24 LED Bar 12 24V 30cms OSRAM
Reference : ACDL117CB

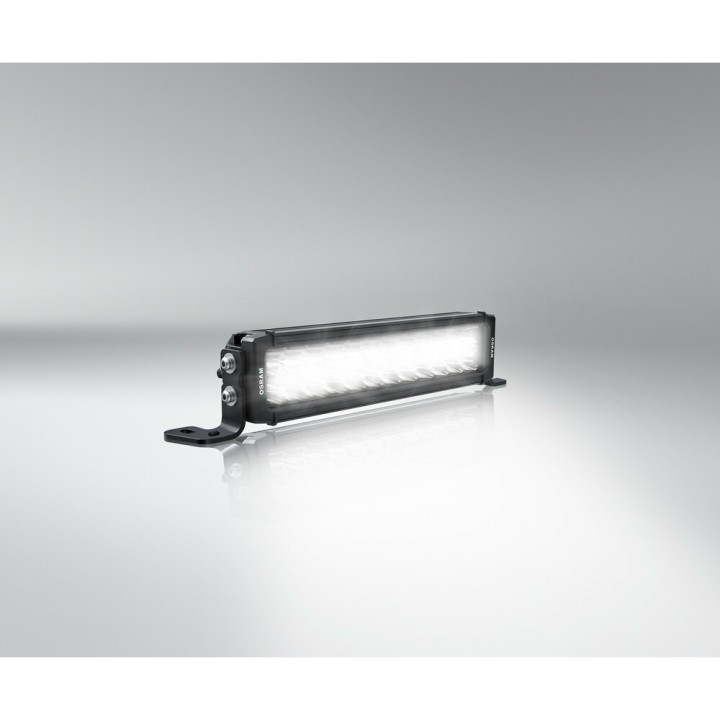

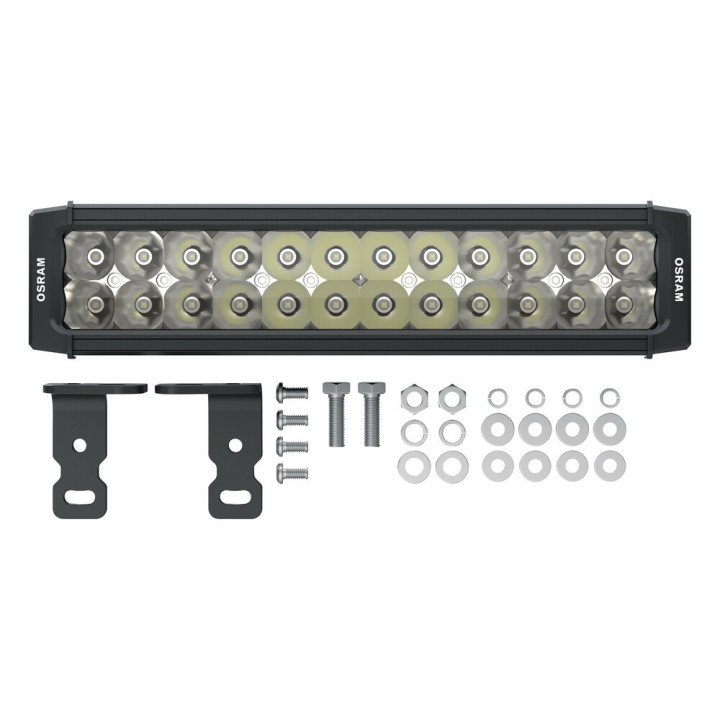

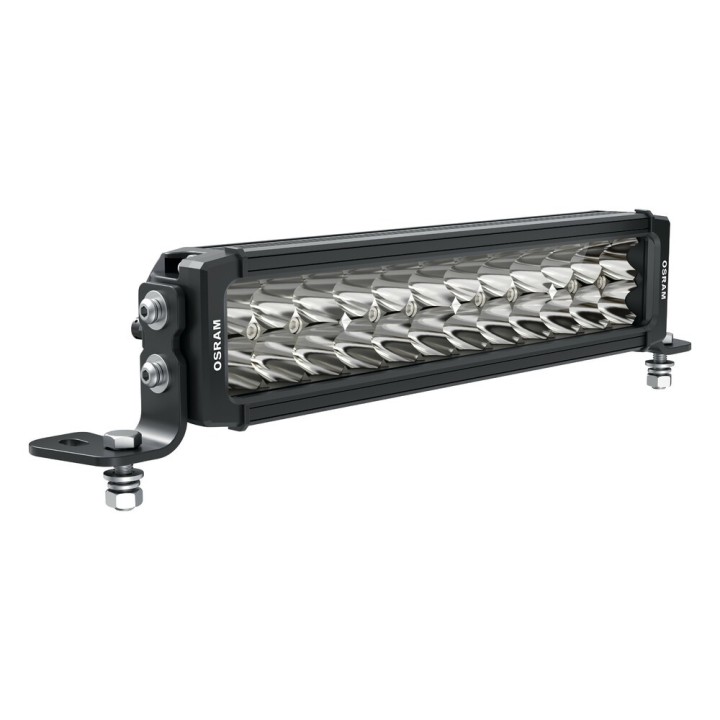

OSRAM 24 LED BAR Projector
12V - 24V
36W
This Osram 250 LED bar is an auxiliary lighting device providing additional long-range illumination on dimly lit or unlit paths. ECE approved, it can also be used on public roads.
With its 24 powerful, long-life LEDs displaying excellent performance, this headlight offers a maximum range of 170 meters – which means impressive visibility for the driver on or off public roads.
can be mounted on passenger vehicles, heavy goods vehicles, agricultural machinery, utility vehicles, construction vehicles, caravans, off-road vehicles and quads.
Features ➢ Auxiliary high beams fully compliant with ECE standard ➢ Increased road safety: up to 170 m light beam ➢ Combined beam pattern: improved far and near field illumination ➢ Compact and robust: unbreakable polycarbonate lens to withstand heavy applications ➢ Overvoltage and undervoltage protection ➢ Integrated driver and thermal management system for superior lifespan ➢ OSRAM DURIS S5 x24 pieces Technical specifications LEDDL117-CB ➢ Light distance at 1lx: 170m ➢ Warm Lumen: 2100lm ➢ Color temperature: 6000K ➢ Nominal input power: 30W ➢ Input voltage: 12 / 24V ➢ IP protection: IP67 ➢ ECE: R112 (Ref. No. 12.5) ➢ CEM / EMI: ECE R10 ➢ Polarity protection ➢ Cable length: 45cm ➢ Weight: 1230g
SHIPPING TIME 2 TO 15 DAYS DEPENDING ON AVAILABILITY
