Ladder Rack FIAT DUCATO H1 2006 TO TODAY hinge mounting on Left Rear Door
Reference : ACFDCTECH2
FIAT DUCATO H1
(2006 - 2024 - TO TODAY-)

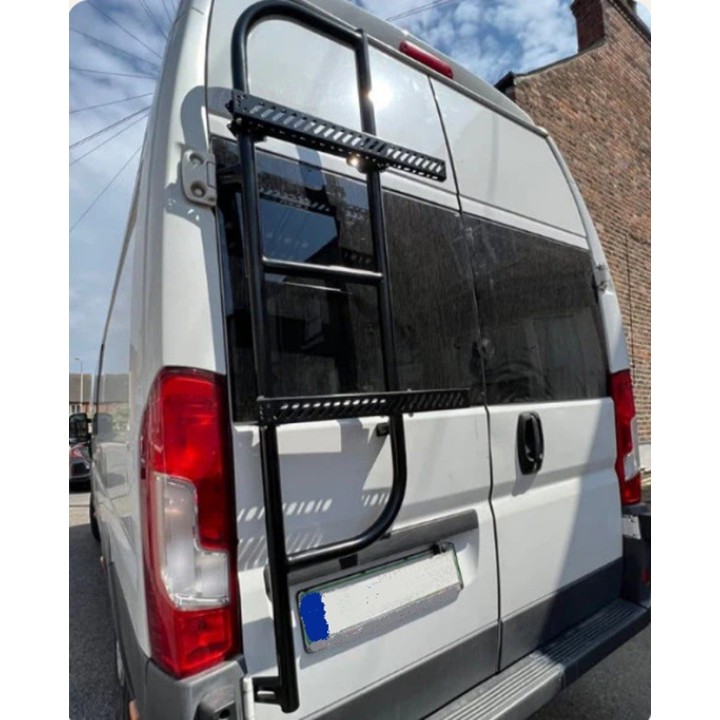

Ladder Rack FIAT DUCATO H1 2006 TO TODAY hinge mounting on Left Rear Door:
No hinge modification required to fit this ladder.
This product will fit all rear doors of this van model.
You do NOT need to change or modify your hinges to fit this product.
If your van is equipped with 180-degree hinges, the door will still open 180 degrees.
If your van is equipped with 270-degree hinges, your door will open 160 degrees.
Designed to fit the left rear door
Available in low roof (H1) and high roof (H2/H3) variants
Does not interfere with factory parking sensors

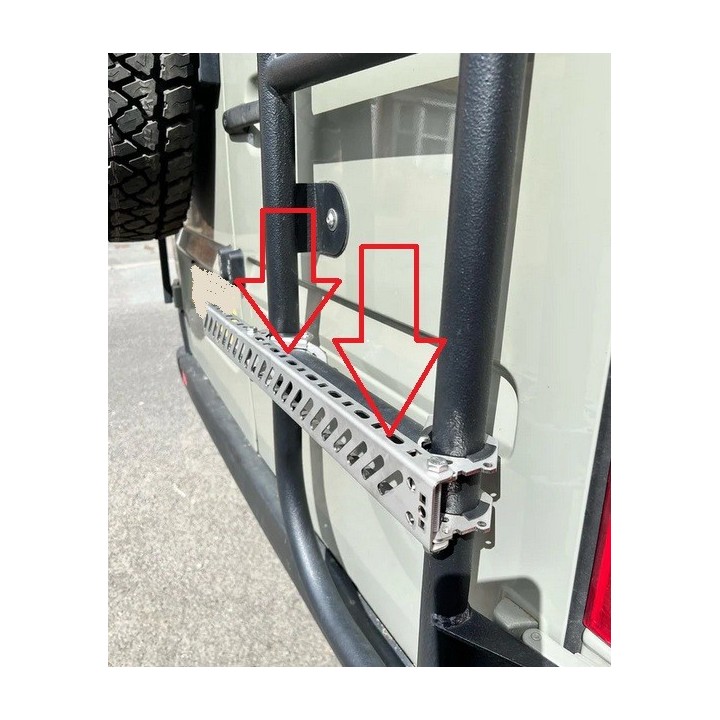

Our rear door ladders bolt onto the rear door through the van's hinge fixings with an additional bolt
through the door lining; this provides a simple, proven, and stable ladder connection to the vehicle.
If your door has a rubber stopper in the middle of the door, the ladder uses this hole to pass through.
Otherwise, you will need to drill this hole through the door lining. If you already have this hole, the ladder is a bolt-on solution
with no holes requiring drilling for installation!
The door does not need to be removed to fit this product.
All drilled holes will require painting on bare metal to prevent corrosion.
We also link the door lining support and the door lining, which removes the point load on the bolts
while sealing the hole to prevent water penetration.
NOTE: Ladder loading system
Product weight: 10KG
MIG welded using lightweight ERW tube.
Laser cut and CNC formed components.
Supplied uncoated so you can finish before installation.
PRODUCT MADE TO ORDER WITHIN 18/20 days
