Rear Spring Kit CITROEN JUMPER X250/290 2006 + Reinforced Rear Spring Kit 750kgs+ with KONI Special Active
Reference : ACMD138SD200
Rear Spring Kit CITROEN JUMPER X250/290 2006 + Reinforced Rear Spring Kit 750kgs+ with KONI Special Active:
Additional springs + KONI Special Active (max length 469 mm) Citroën J r 30/33/35/40, type 250/Y from model year 04.06.. + facelift 05.14.. (Reinforced kit/with single and double leaf springs/minimum load 750 kg)
Maximum support: 30, 33, 35, 40; minimum load: 750 kg; shock absorber length: max. 469 mm / min. 307 mm.

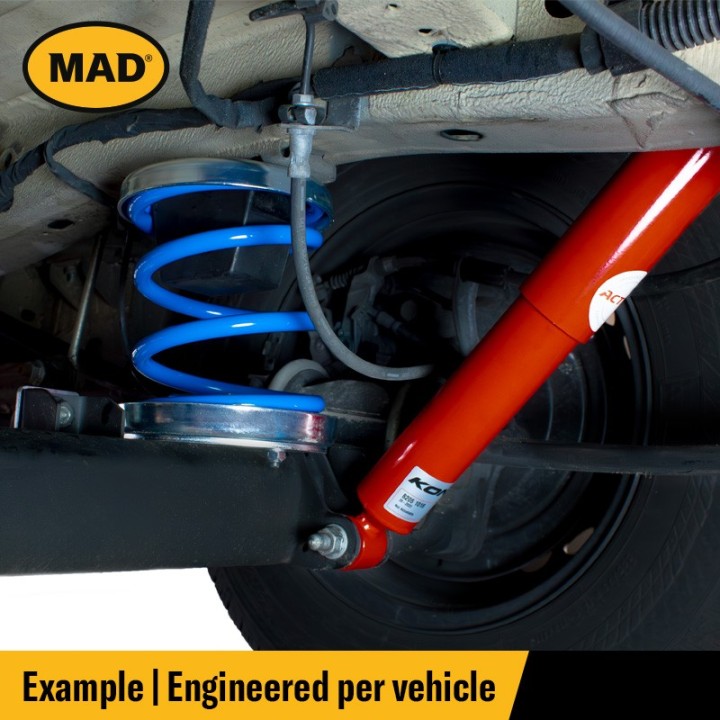

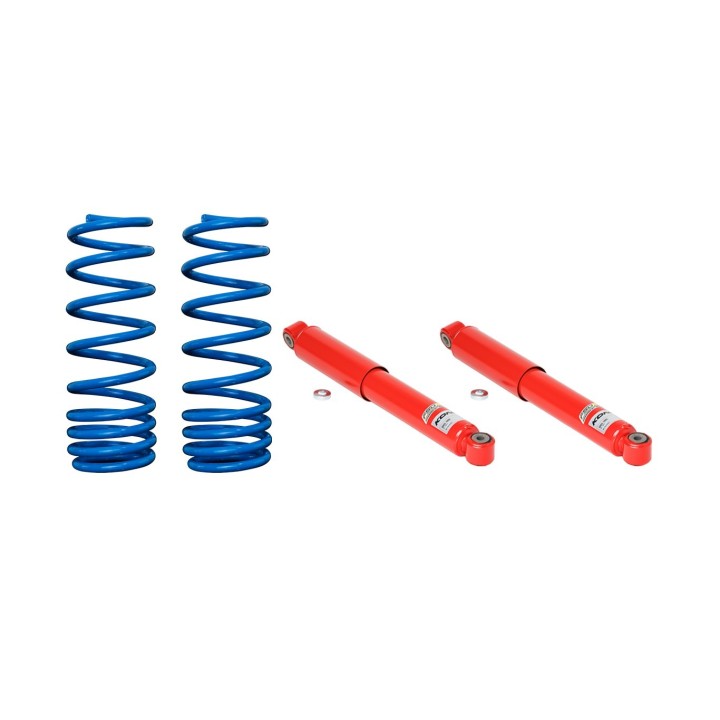

A set of auxiliary springs for the rear axle reinforces the original leaf springs. These auxiliary springs are installed between the chassis and the axle (see image System 0) and integrate high-end KONI Special Active shock absorbers.
The MAD Special Duty kit offers maximum stability, optimal handling, excellent road holding, and exceptional driving comfort, regardless of the conditions. These kits have been specially designed for light commercial vehicles, special vehicles, and motorhomes operating in extreme conditions, such as heavy loads, high centers of gravity, or rough terrain.
In these extreme situations, the original shock absorber may not be able to correctly control the improved suspension system. This can lead to excessive sag in compression and rebound, as well as prolonged swaying after driving on uneven roads, which is particularly unpleasant. This is why we combine a selection of our advanced suspension systems with high-end KONI Special Active shock absorbers: the MAD Special Duty kit.
The ideal solution for specific applications and a wise investment for optimal performance, offering a price advantage both at purchase and installation.
Heavy loads, towing, and vehicles equipped with an LPG system often significantly impair road holding. This results in an increased risk of skidding and swaying in bends, in crosswinds, and when overtaking. Bumps, road irregularities, and potholes are transmitted more intensely. This is why MAD has developed reinforcement springs. These springs optimize the rebound force of the original suspension, thereby improving vehicle stability, comfort, and safety. Their installation is simple and can be carried out by any garage.
Advantages:
MAD springs are virtually indestructible and often last the entire life of the vehicle.
Economical, quick, and easy installation, without any modification to the vehicle.
Custom design for each vehicle.
Recommended by many car manufacturers.
Production and development compliant with ISO 9001 and TÜV standards.
The kit is supplied with an RWTÜV Essen certificate of conformity. Proper installation must be validated by an approved inspection body.
Click here to request the certificate of conformity and/or assembly instructions.
Installation time: approximately 45 minutes.
Features:
- Reinforced kit, for vehicles with permanent load and equipped with high-end KONI Special Active shock absorbers with a maximum length of 469 mm and a minimum of 307 mm.
- Compatible with single and double leaf springs.
- Only for vehicles equipped with ABS and with an unladen axle load greater than or equal to 1,500 kg.
- Minimum load: 750 kg.
- Not compatible with e-Jumper models, AL-KO rear axle, self-levelling suspensions, standard air suspensions, and load-dependent brake pressure regulator on axle 2.
