VAN SWING swivel module for Fiat Ducato 06/2006+ left REF 25500L
Reference : 25500L
VAN SWING swivel module for Fiat Ducato 06/2006+ left REF 25500L:

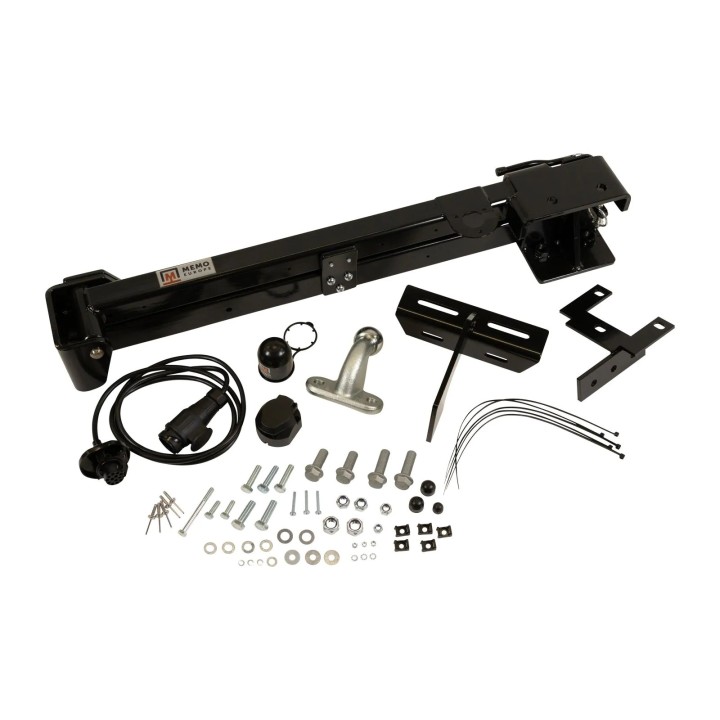

9320260 | 1 x Van-Swing-Left swivel module
9320261 | 1 x Van-Swing-Left trailer hitch ball joint
Van-Swing, swivel module for panel vans with left or right hinge
A well-known problem with panel vans is finding a suitable bike rack. Bike racks on the tow ball hinder the opening of the rear doors. In addition, bikes are too heavy for rear door bike racks and bikes have to be lifted too high.

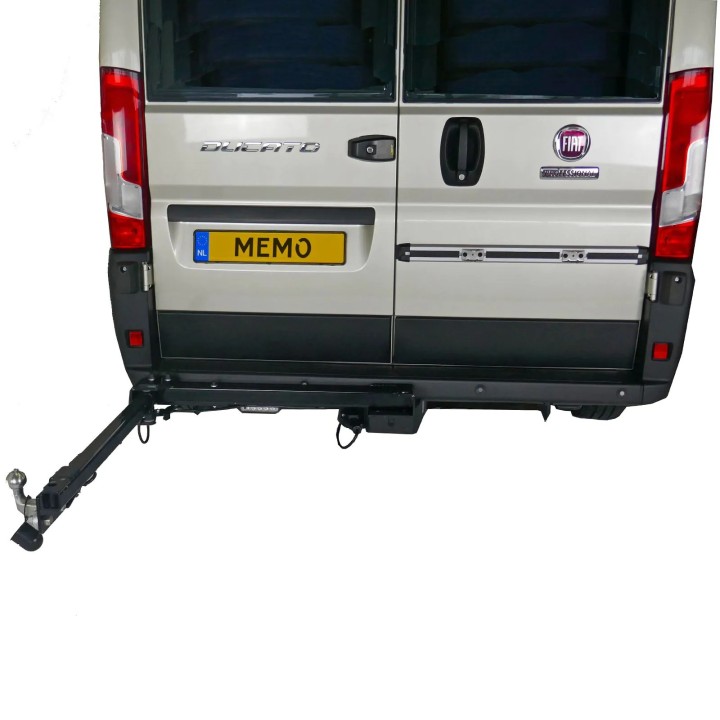

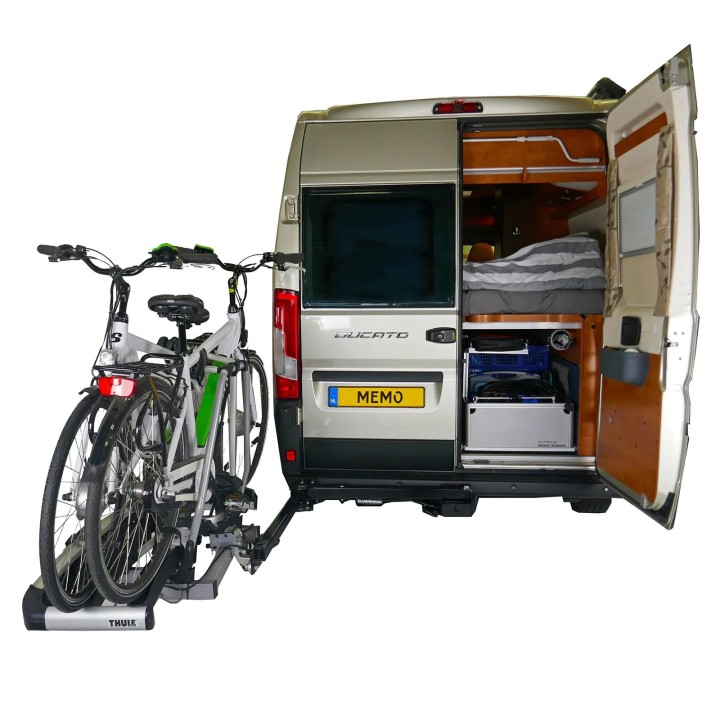

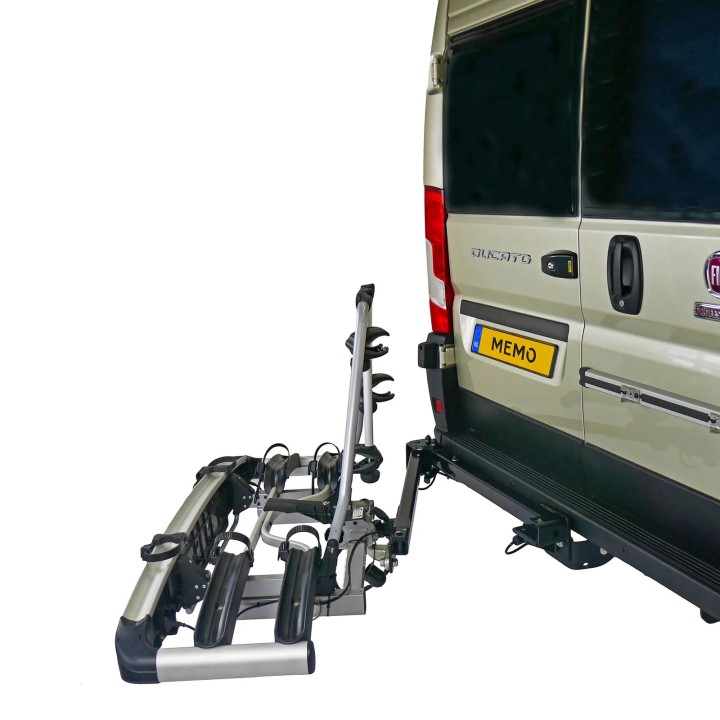

The perfect solution for this is the Van-Swing swivel module. By mounting the simple swivel module on an existing or to-be-mounted hitch, you can use your own bike rack. You don't need to remove the bikes and the bike rack to open the rear doors. The swivel module allows you to turn the bike rack with the bikes to the side so that both rear doors can be opened at the same time.
The VAN-Swing uses the existing mounting points of your trailer hitch. In some cases, the module can be mounted on an existing trailer hitch. If you have doubts about the suitability of your tow hitch, please contact your dealer or Memo in advance. If a tow hitch is not yet available, we can supply it separately if necessary. The Van Swing swivel module is not designed for towing trailer loads.
The advantages of the hinge on the right side of the van: + Safety, the rotating bar turns towards the "sidewalk side" and not towards the road. + Convenience, the right door opens first, no need to fully open the luggage rack.
The advantages of the hinge on the left side of the van: + Convenience, there is no need to go around the rotating bar to access the rear doors. + Practical, the right door opens easily to quickly grab something.

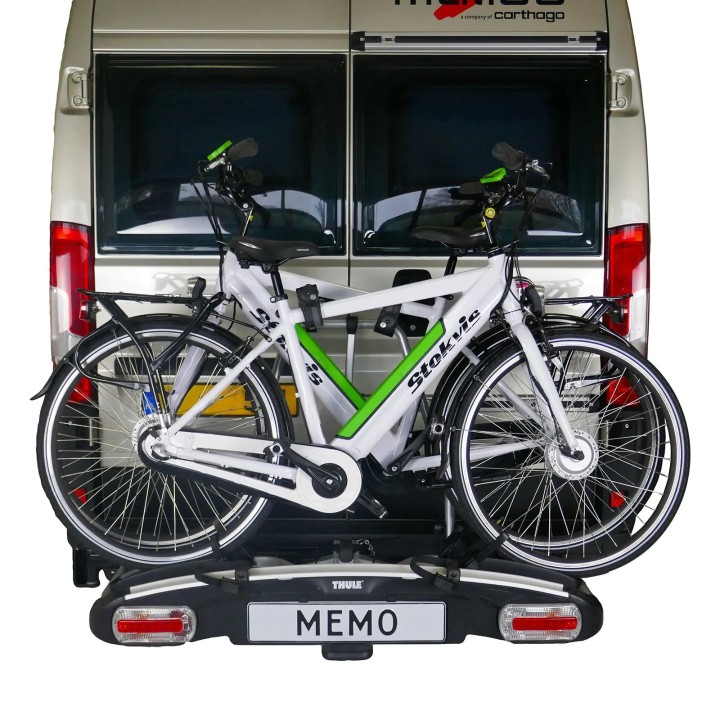

The load capacity of the Van-Swing is 60 kg. This includes bikes and the bike rack. This means that if the bike rack weighs 15 kg, the bikes can still weigh a maximum of 45 kg. Is the combination of bikes and bike rack too heavy? Then we recommend the Van-Star bike rack, the Van-Star can carry (electric) bikes weighing 60 kg.
Because the module is placed above the hitch, the bike rack is at knee height, which is ideal for bikes that don't need to be lifted high. Due to the use of existing mounting points, no modifications need to be made to the vehicle itself. The module is suitable for all Ducato models from 2006. On request, you can also purchase the module for Volkswagen T5 and T6, Renault Master from 2003 to 2010, and Ford Transit Custom from 2014. In this case, simply contact us. The VAN swing comes with an integrated 13-pin socket to extend the existing socket. From now on, the Van-Swing can only be ordered in black.
Equipped with European approval. First in its class!\
-
Suitable for van models:
-
Fiat : Ducato
