Rear Air Suspension KIT for MAN TGE 3.5T 2017 TO PRESENT with Specific Panel Compressor
Reference : ACNR197CS534CS
MAN TGE 3.5T
(2017 - TO PRESENT-)

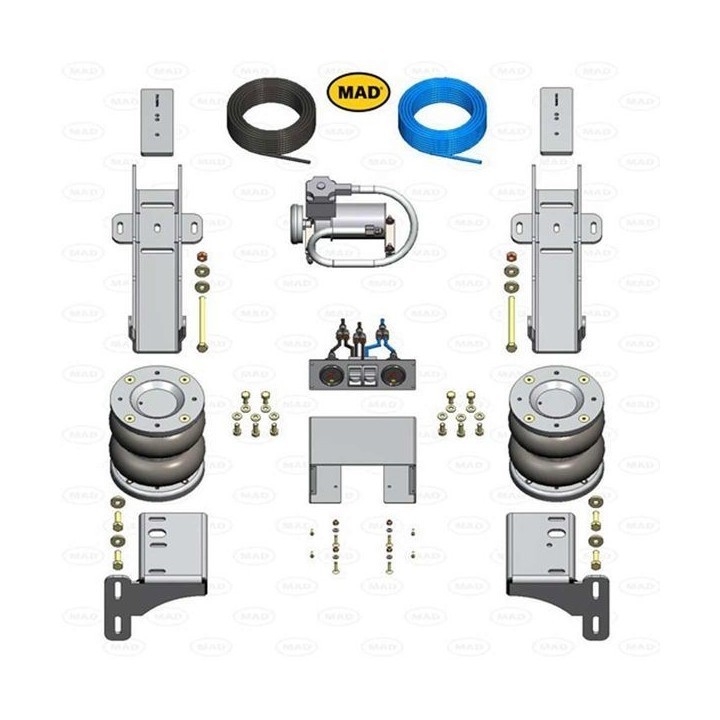

Rear Air Suspension KIT for MAN TGE 2017 TO PRESENT :

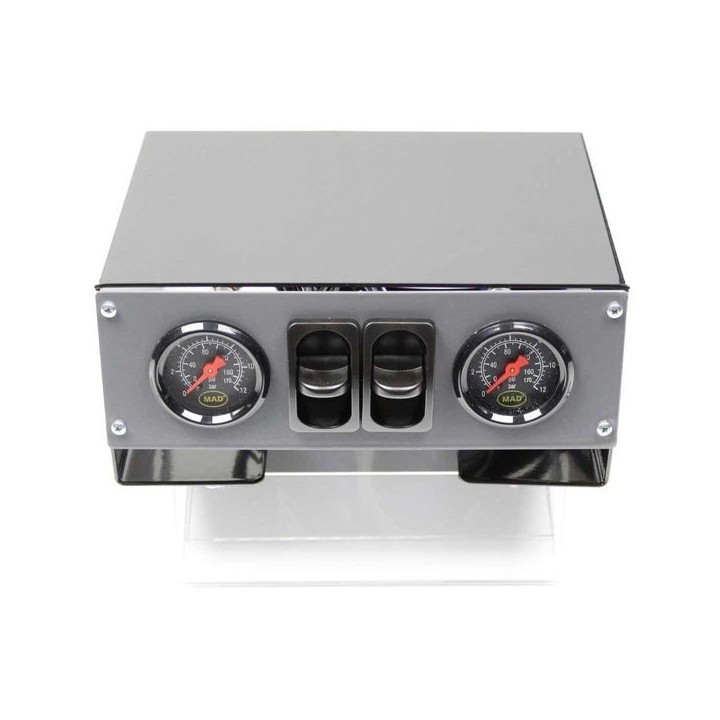

with Specific Panel Compressor 2 pressure gauges 1 switch :
MAD air suspension is generally designed to work with the vehicle's original rear suspension. Available in different versions, it is suitable for motorists who wish to adjust the hardness of their suspension themselves. Air suspension is available with manual filling, which requires air access to inflate the bellows to the desired pressure. It is also available with a compressor and a pressure gauge, allowing you to adjust the pressure yourself while driving. There is also a complete air suspension that compensates for the original suspension and automatically adjusts the load level. By installing air suspension on your vehicle, you benefit from a completely different driving experience, whether you are driving loaded or not. All air suspensions are specific to each vehicle model. With air suspension, you can also adjust the height of the rear of your vehicle to increase ground clearance. Comfort and safety are of a higher level with MAD air suspension. Its installation requires no modification to the vehicle and you do not need to drill holes or do other work to install the bellows supports. MAD kits never affect the car's warranty.
Suitable for the following car models below:
- VW Crafter II 3.5T with chassis 2017+ (rear with front-wheel drive, rear-wheel drive, 4x4 and E-Crafter, excluding twin-wheel vehicles).
- MAN TGE 3.5T (front-wheel drive, rear-wheel drive, 4x4 ) 2017+ (with single rear wheel).
- Assembly time: 270 minutes
You will get better results if the air bellows are installed with a compressor. This allows you to adjust the air pressure in your bellows at the touch of a button from the cabin, but also prevents damage by constantly monitoring the pressure.
Air suspension has the advantage of being able to vary the hardness of the right and left bellows, which can be very advantageous if, for example, the vehicle is more stressed on one side. It can also support heavier loads than a steel spring, but it is important to note that an air spring is less comfortable under a constant load. In this case, a reinforced steel spring may be more suitable.
- Minimum pressure in unloaded air bellows 0.5 BAR
- Min and max pressure under load 1.0 - 3.0 BAR
- Reduced tire wear
- The best air bellows on the market
- Does not affect car warranties
- Reduced sensitivity to crosswinds
- All MAD products are TUV approved
- Better quality and fit
- All kits are available with and without compressor
- 2-year hardware warranty without compressor
- 3-year hardware warranty with compressor (Electronics 1 year)
SHIPPING TIME 1 - 2 WEEKS
