Rear Air Suspension KIT for VOLKSWAGEN CRAFTER 2006 2016 with Specific Compressor Panel
Reference : ACNR197CS534
VOLKSWAGEN CRAFTER
(2006 - 2016)
Rear Air Suspension KIT for VOLKSWAGEN CRAFTER 2006 2016:

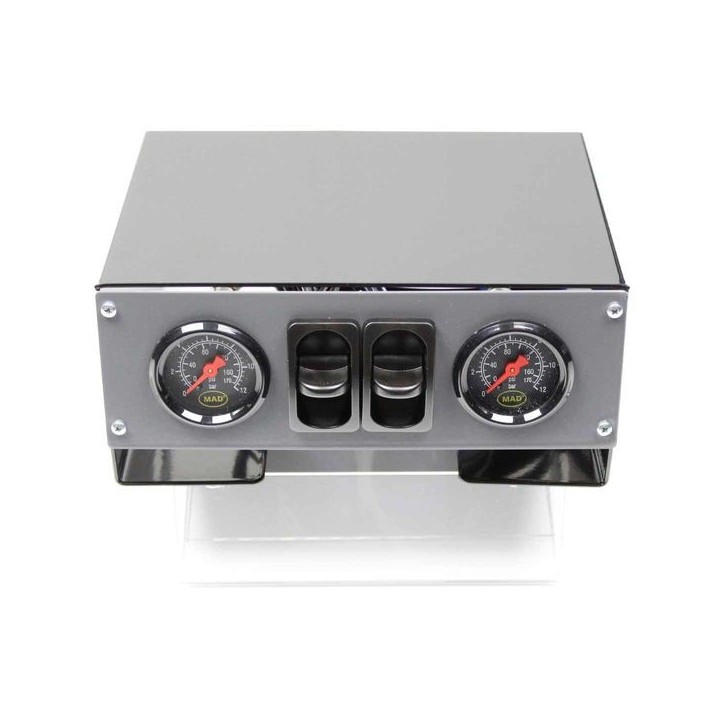

with Specific Compressor Panel 2 pressure gauges 1 switch:

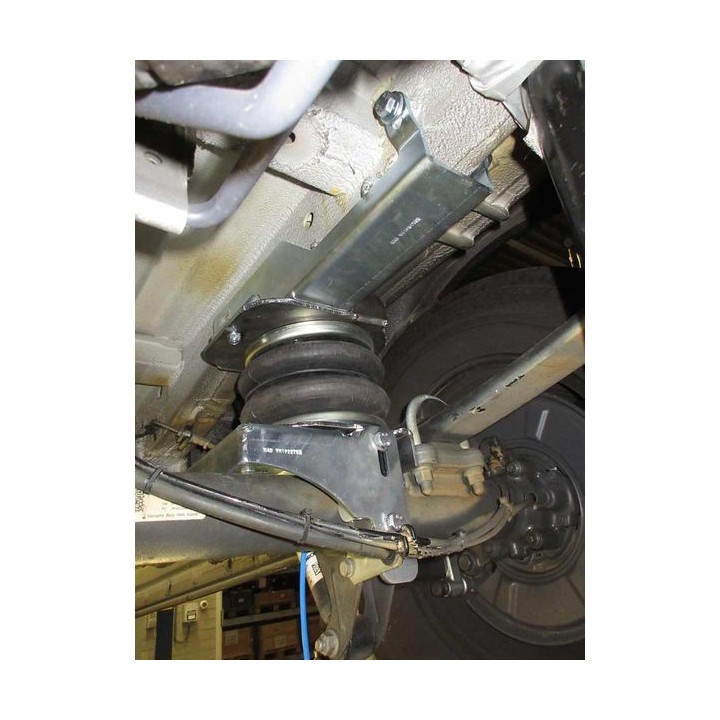

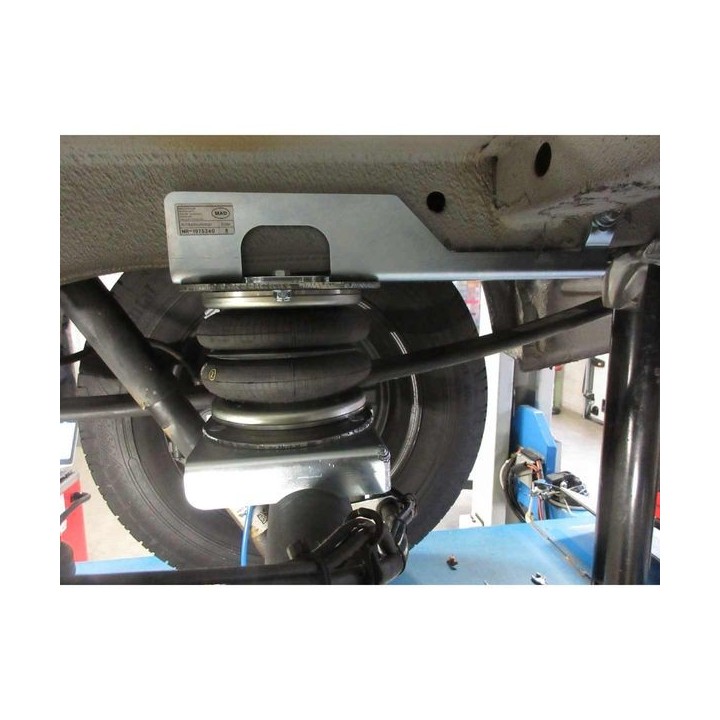

The MAD auxiliary air suspension kit comes as two air cushions supplied with all necessary parts adapted to each type of chassis:
- The inflatable bellows are 180 mm in diameter (Min height 8 cm and max height 23 cm for two-stage MAD cushions, Min height 9 cm and max height 30 cm for three-stage cushions),
- The upper mounting brackets for attaching the cushion to the chassis rail,
- The lower mounting brackets for attaching the cushion to the leaf springs, to the axle or to the differential for rear-wheel drive vehicles,
- The necessary screws, nuts, bolts, washers,
- The flexible Rilsan hoses (blue and black diameter 5*3) easy to place under the chassis (in sufficient length: either two times 5 meters of each color, or two times 10 meters of each color depending on the chosen inflation option),
- The air fittings and small fixing nuts to properly tighten the hoses to the fittings,
- The inflation, deflation valves with a small mounting bracket so that they are placed next to each other in the location of your choice (at the rear of the vehicle in a trunk or hold, at the bottom of the driver's seat or near a running board, or outside near the license plate, in the wheel arch),
- The fixing clamps for attaching the air hoses under the vehicle following the brake hose circuit.
- it is advisable to protect the exposed air hose parts under the chassis with a split sheath (e.g. electrical sheath not supplied in the kit).
- options: MAD offers various complementary solutions to optimize use. The option containing two pressure gauges facilitates visual monitoring of air pressure. Integrated compressor options allow for autonomous inflation without the need for an external air source (Example: inflation station like for tires, or portable compressor).
The Air Master Comfort includes two air cushions and mounting hardware, a compressor, and a dual control panel. The compressor offers even more comfort and flexibility on the road. The auxiliary air suspension can be adjusted separately left and right via the supplied control panel.
Main features
Provides adjustable support to the original suspension system
Adjustable ride height so the motorhome/caravan can be height adjusted
Offers maximum comfort and improves stability with varied loads
More direct vehicle response, improving handling
Reduces body roll in corners and sensitivity to crosswinds
COMPATIBLE WITH THE FOLLOWING MODELS:
Mercedes Benz Sprinter, including chassis cab, 906, 3.0-3.5t from 06/2006: option B, C and R
excluding 4WD, excluding C15 O5 lowered
Mercedes Benz Sprinter, including chassis cab, 907, 3.0-3.5t from 02/2018: option B, C, CS and R
excluding 4WD, only CW2 OE not lowered
extended exhaust on axle: NR-AD19003 from 02/2018 required
Volkswagen Crafter, including chassis cab, 2E / 2F from 06/2006 to 12/2016: option B, C and R
excluding 4WD
- Assembly time: 270 minutes
- Minimum pressure in empty air bellows 0.5 BAR
- Minimum and maximum pressure under load 1.0 - 3.0 BAR
- Less tire wear
- The best air bellows on the market
- Does not affect car warranties
- Reduced sensitivity to crosswinds
- All MAD products are TUV approved
- Better quality and fit
- All kits are available with and without compressor
- 2-year material warranty without compressor
- 3-year material warranty with compressor (Electronics 1 year)
SHIPPING TIME 1 - 2 WEEKS
