Rear Air Suspension KIT for VOLKSWAGEN AMAROK 2017 2022 with Specific Panel Compressor
Reference : ACNR197CS194
VOLKSWAGEN AMAROK
(2017 - 2022)
Rear Air Suspension KIT for VOLKSWAGEN AMAROK 2017 2022 :
with Specific Panel Compressor :
-

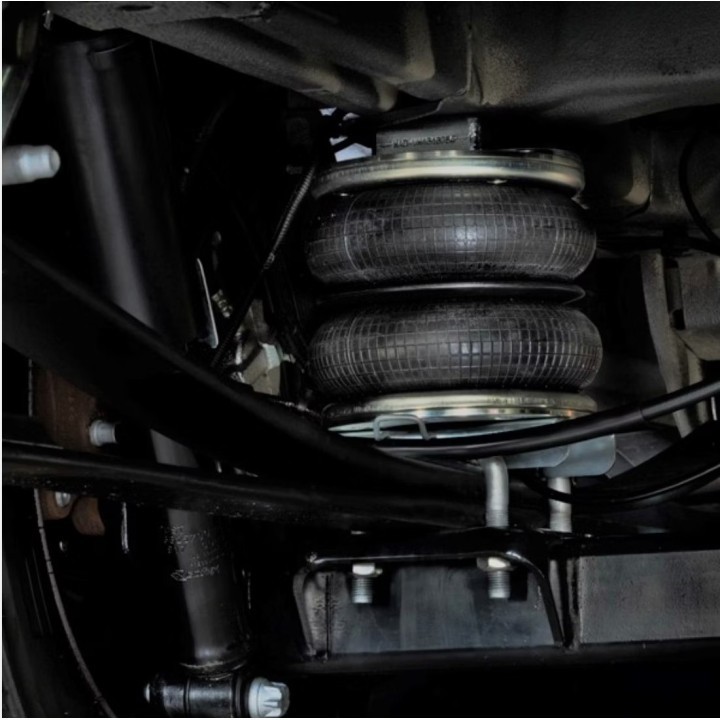

The MAD Air suspension for the Volkswagen Amarok is in most cases designed to work with the car's original rear leaf spring "Auxiliary air suspension".
-
Air suspension comes in different variants and is suitable for car owners who want to be able to adjust the stiffness of their suspension themselves.
-
Air suspension is available for manual filling as you need to have access to air to fill the bellows to the desired pressure.
-

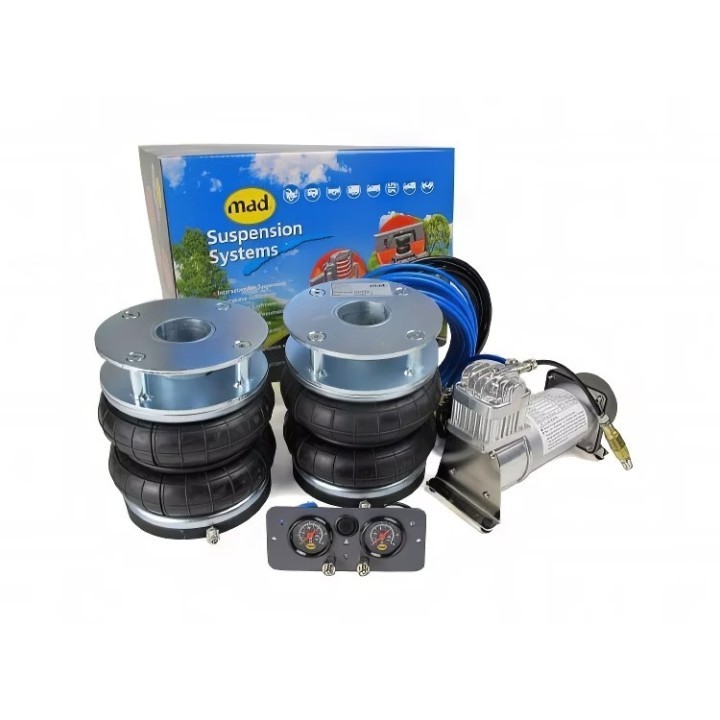

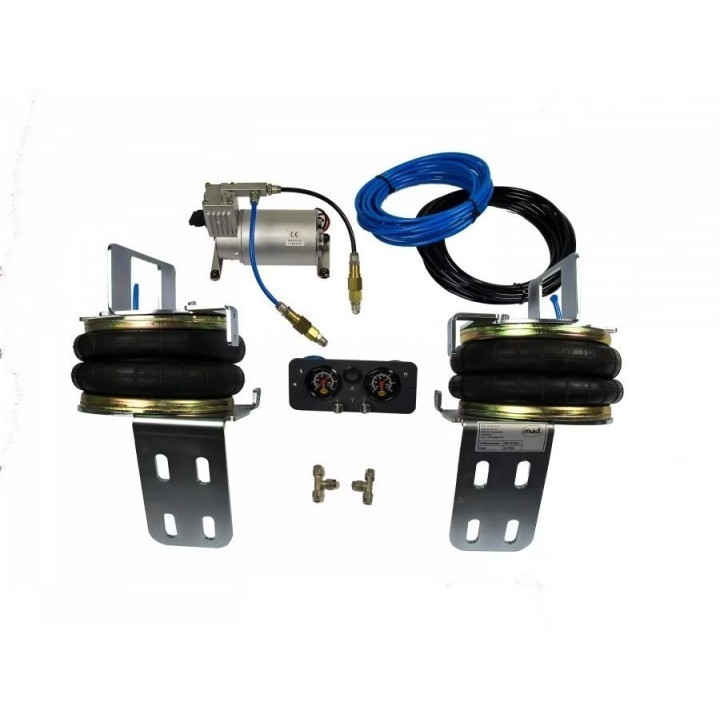

It is also available with a compressor and a pressure gauge so you can set the desired pressure yourself, even while driving.
-
Then there is a full air suspension that compensates for the car's original suspension and automatically adjusts the load level.
-
By installing air suspension on your car, you get a completely different driving experience, whether you are driving loaded or unloaded.
-
All air suspensions are model-specific to match your particular car model.
-
With air suspension, you can also adjust the height of the rear of your vehicle on specific occasions if you need higher ground clearance.
-
Comfort and safety reach a whole new level with MAD air suspension.
-
MAD air suspension requires no modifications to the car to install and you never need to drill holes or anything else to install air bellows mounts.
Compatible with the following car models :
- Volkswagen Amarok 4-wheel drive 2010-2016 (Not for cars with 3+2 leaf suspension)
- Volkswagen Amarok 2017 - 2022 (Not for cars with 3+2 leaf suspension)
You get the best results if the air bellows are mounted with a compressor. You can then partly adjust the air pressure in your bellows via a simple push of a button inside the car's cabin, but you also avoid the risk of destroying the bellows with too high or too low pressure because you are constantly aware of what pressure you have.
Air suspension has the advantage of being able to have a different stiffness in the right and left bellows, which can be a big advantage if, for example, you are cycling. have more load on one side of your vehicle. Air suspension also generally supports heavier loads than a steel spring, but it should be emphasized that an air spring does not feel good under constant and heavy load, so in these cases, e.g. a robust steel spring would be preferable.
INFORMATION :
- Minimum pressure in air bellows when empty 0.5 BAR
-
- Minimum and maximum pressure under load 1.0 - 3.0 BAR
- All MAD products are TUV approved
- Best quality and fit
- MAD air suspension never affects car warranties
- Less wear on your tires
- Reduced sensitivity to crosswinds
- All kits are available with and without compressor
- Material warranty 2 years without compressor
- Material warranty 3 years with compressor (Electronics 1 year)
SHIPPING TIME 1 - 2 WEEKS
MAD's suspension system is there to compensate for different load weights and to support and assist the car's original spring system so that you maintain safety and comfort even at the maximum allowed load. Suspensions never increase the maximum allowed load weight for the car.
All images are universal for the respective mounting system. The appearance of the bellows and brackets may differ somewhat from the available images, but they always correspond to the intended car kit.
