Rear Air Suspension KIT for ISUZU D-MAX 2002 2012 4x4 with Specific Panel Compressor
Reference : ACNR077CS064
ISUZU D-MAX I
(2002 - 2012)

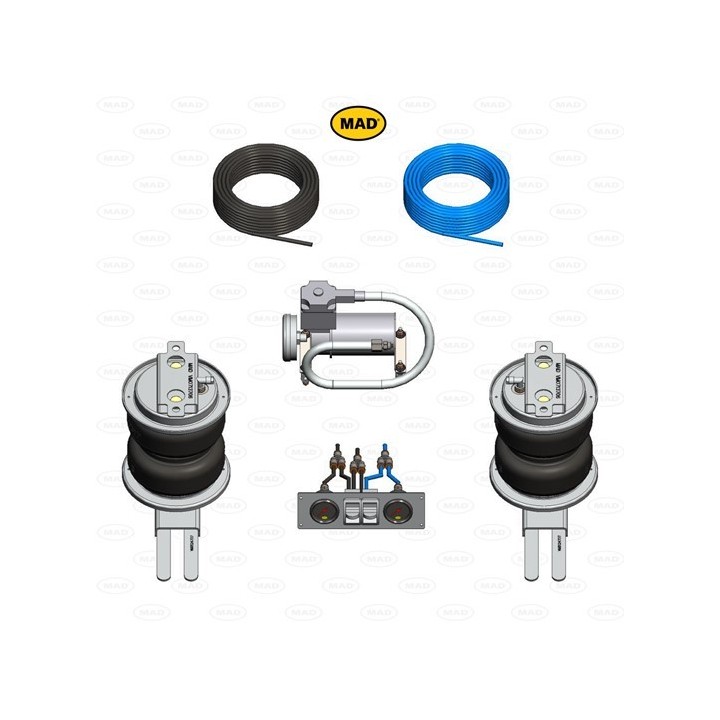

Rear Air Suspension KIT for ISUZU D-MAX
with Specific Panel Compressor :
MAD air suspension with compressor for Isuzu D-Max 2002-2012, ideal for those who want to adjust the firmness of their suspension themselves.
-
MAD air suspension is in most cases designed to work with the car's original rear suspension. Air suspension comes in different variants and is suitable for car owners who want to be able to adjust the hardness of their suspension themselves. Air suspension is available with manual filling as you need to have access to air to fill the bellows to the desired pressure. It is also available with a compressor and pressure gauge so you can adjust the desired pressure yourself, even while driving. There is also a full air suspension that compensates for the car's original suspension and automatically adjusts the load level. By installing air suspension on your car, you get a completely different driving experience, whether you are driving loaded or unloaded. All air suspensions are model-specific to match your particular car model. With air suspension, you can also adjust the height of the rear of your vehicle on specific occasions if you need higher ground clearance. Comfort and safety reach a whole new level with MAD air suspension. MAD air suspension requires no modifications to the car to install and you never need to drill holes or anything else to install brackets for air bellows. MAD rates never affect the car's warranty.
Suitable for the following car model below :
- Isuzu D-Max 2002-2012

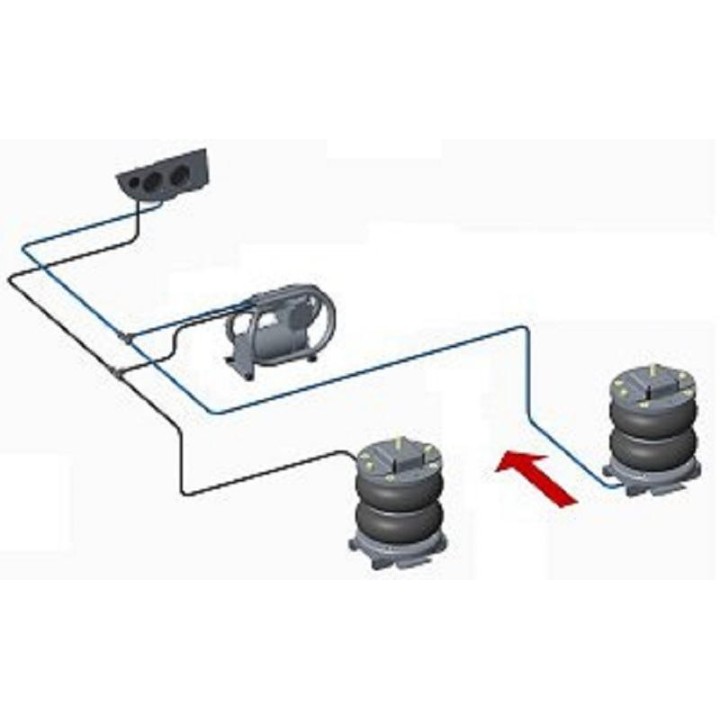

You get the best results if the air bellows are mounted with a compressor. You can then partly adjust the air pressure in your bellows via a simple push of a button inside the car's cabin, but you also avoid the risk of destroying the bellows with too high or too low pressure because you are constantly aware of the pressure you have.
Air suspension has the advantage of being able to have different hardness in the right and left bellows, which can be a big advantage if, for example, you have more load on one side of your vehicle. Air suspension also generally supports heavier loads than a steel spring, but it should be emphasized that an air spring does not feel good under constant and heavy load, so in these cases, e.g. a robust steel spring would be preferable.
- Minimum pressure in empty air bellows 0.5 BAR
- Minimum and maximum pressure under load 1.0 - 3.0 BAR
- All MAD products are TUV approved
- Best quality and fit
- All kits are available with and without compressor
- 2-year hardware warranty without compressor
- 3-year hardware warranty with compressor (Electronics 1 year)
SHIPPING TIME 1 - 2 WEEKS
MAD's suspension system is there to compensate for different load weights and to support and assist the car's original spring system so that you maintain safety and comfort even at the maximum authorized load. Suspensions never increase the maximum authorized load weight for the car.
All images are universal for the respective mounting system. The appearance of the bellows and brackets may differ somewhat from the available images, but they always correspond to the intended car kit.
