Pickup Bed Rack Length 140 cms Height 29 cms
Reference : ACHTREX25
Pickup Bed Rack Length 140 cms Height 29 cms:

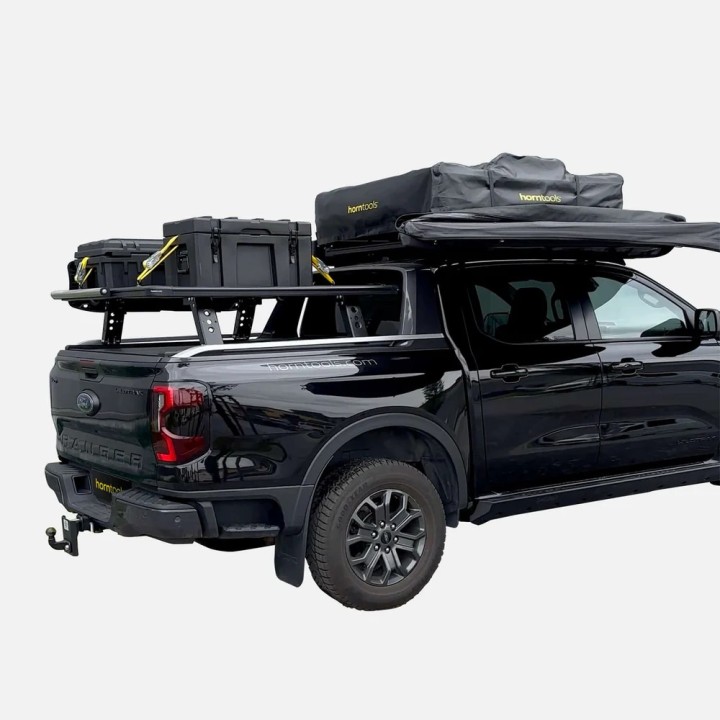

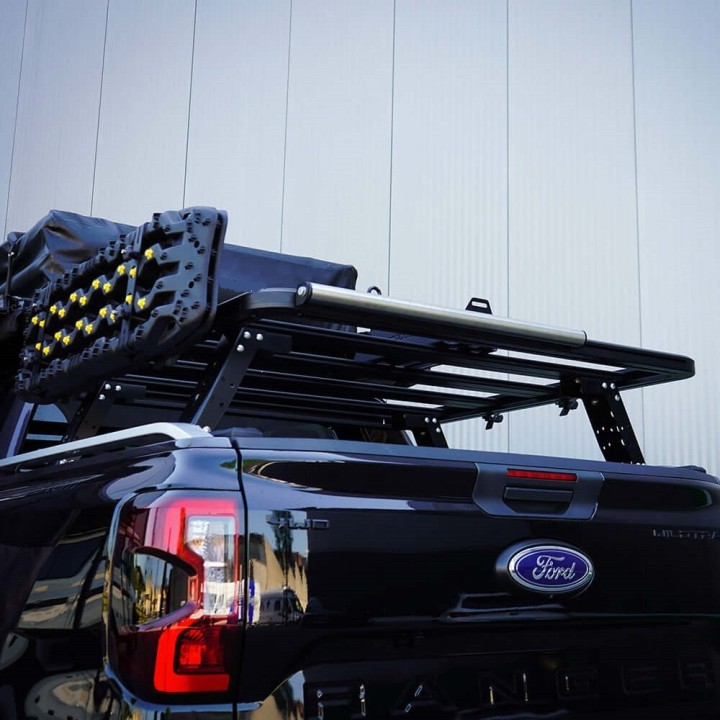

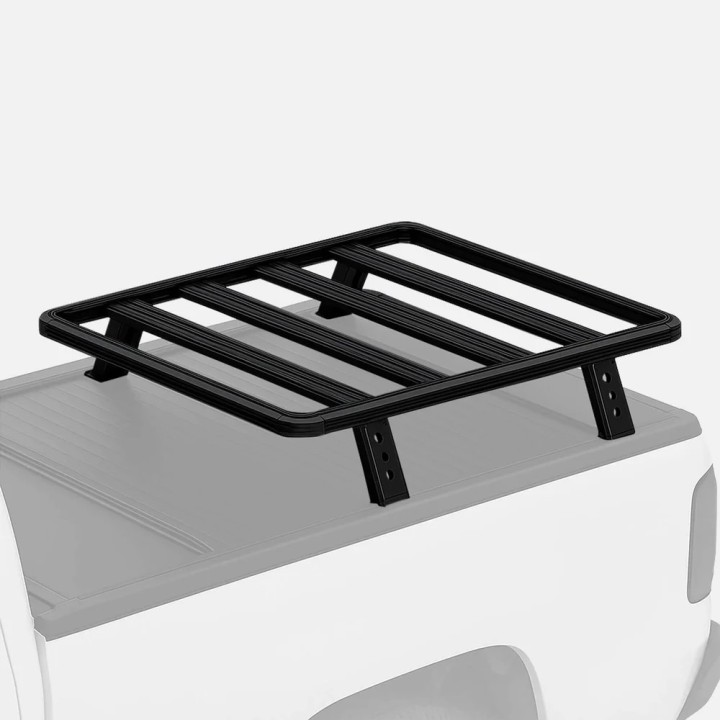

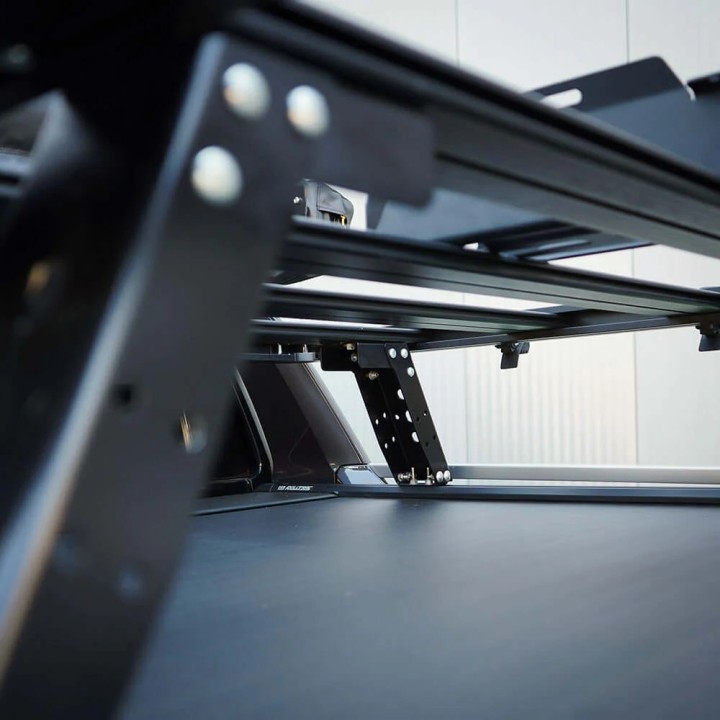

With the pickup bed rack, you will create additional storage space and thus exploit the full potential of the loading area. The rack is specially designed for pickups equipped with roll-top covers. The feet attach directly to the T-rails.

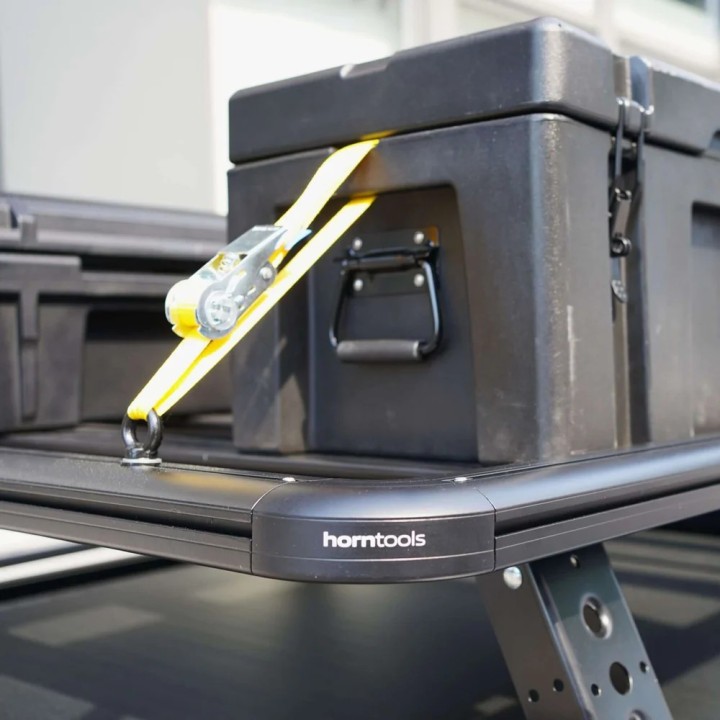

On the cross profiles, you can easily attach all types of accessories using T-nuts – for example, awning brackets, lashing rings for straps, quick-release fasteners for roof tents, fixings for sand recovery boards, and much more.

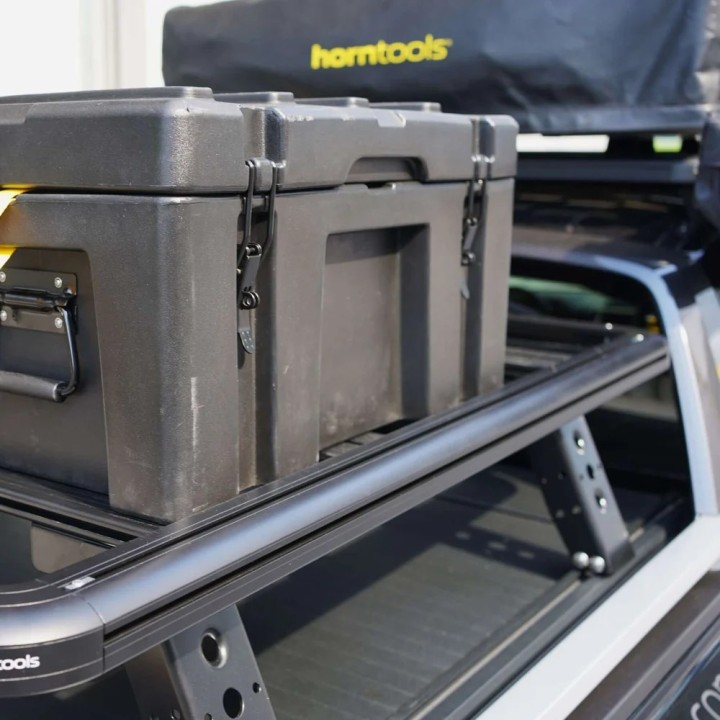

The rack offers enough space for a roof tent or transport boxes.
The total height is 29 cm.
The maximum permissible load depends on the load capacity of the roller shutter.
On the Mountain Top model, for example, the limit is 75 kg.

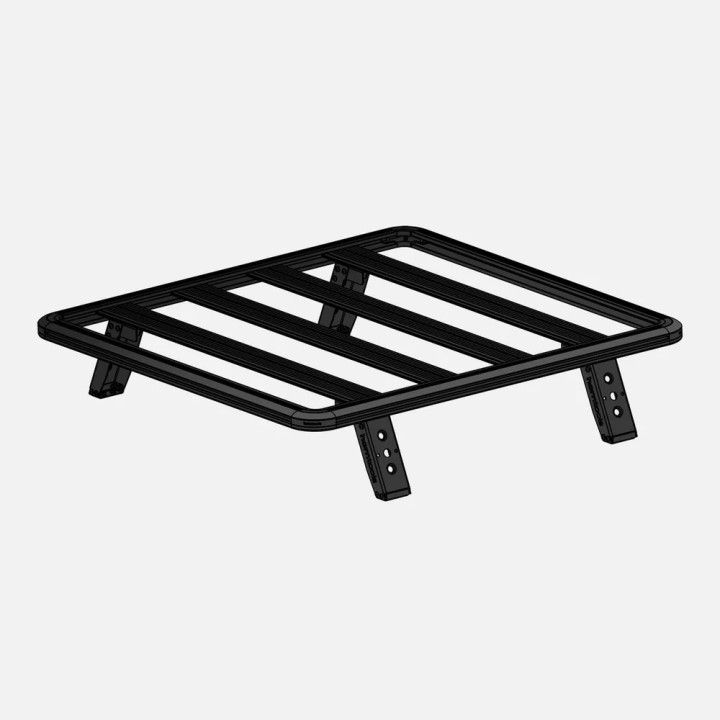

- Rack dimensions (L x W x H): 1400 x 1350 x 49 mm
- Total height (feet + rack): 290 mm
- Rack material: Aluminum (powder coated)
- Feet material: Steel (S235 JR, powder coated)
- Color: Black
- Total weight: 24 kg
Compatibility:
- Horizontal T-slots required on both sides of the loading area.
- Distance between T-slots: minimum 1,000 mm, maximum 1,360 mm.
- Check the insertion of the supplied T-screws (see technical drawing).
- Consider the risk of collision with any style bars present on the cab side.
Scope of delivery:
- 1 x pickup bed rack
- 4 x mounting feet for bed (T-rails)
- Mounting material
- Assembly instructions
Delivery within 5/7 working days (depending on availability)
