Retractable Rear Step for MAXUS T90 T60
Reference : ACFRAR028
MAXUS T90 / T60
RETRACTABLE REAR STEP FOR BED

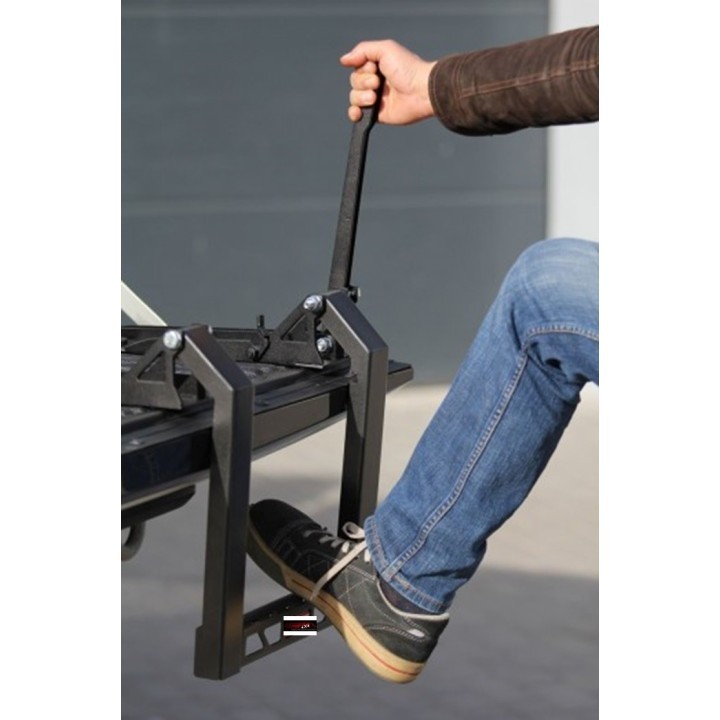

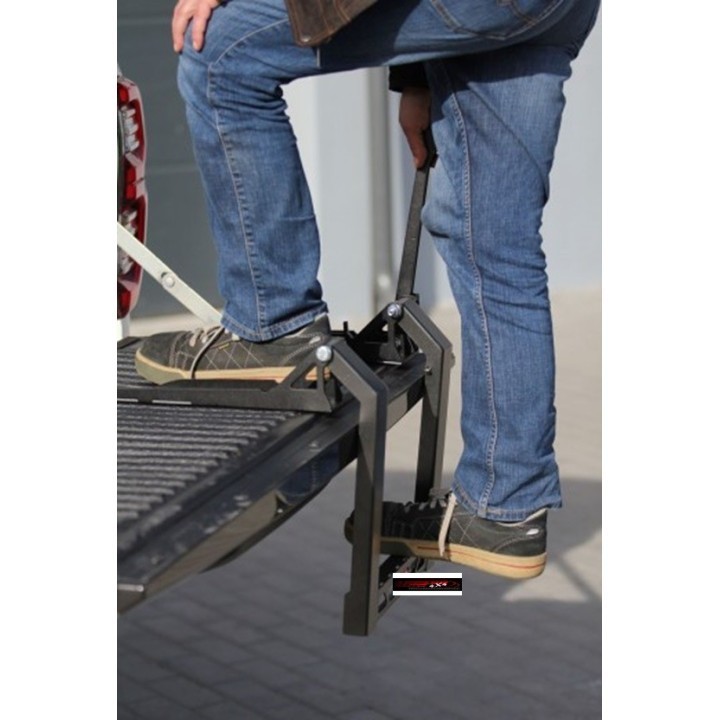

The retractable step for pick-ups has been designed to facilitate entry into the vehicle's bed. The structure is also equipped with a right-hand grip to provide an additional support point.

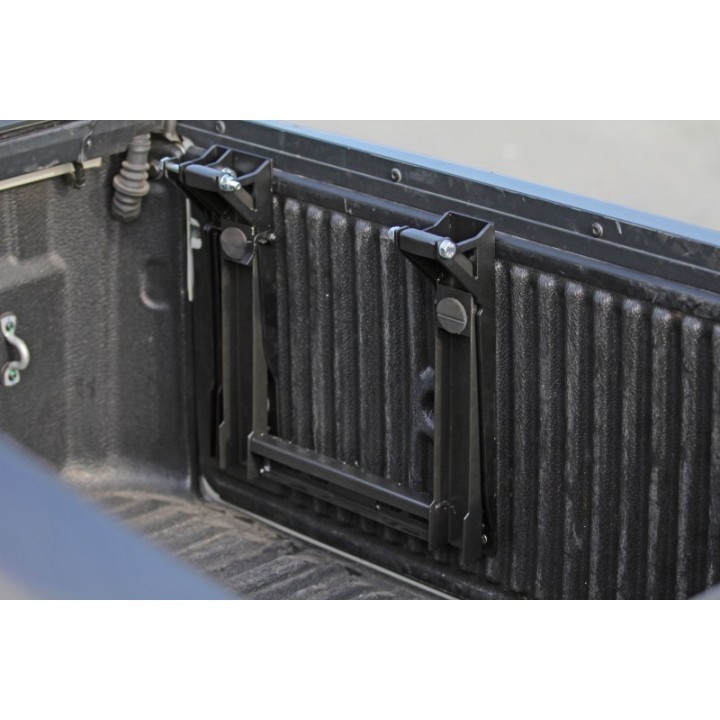

The folded step takes up little space in the loading area and, thanks to the micro-rubber pads, it does not damage the vehicle's tailgate when using the step.

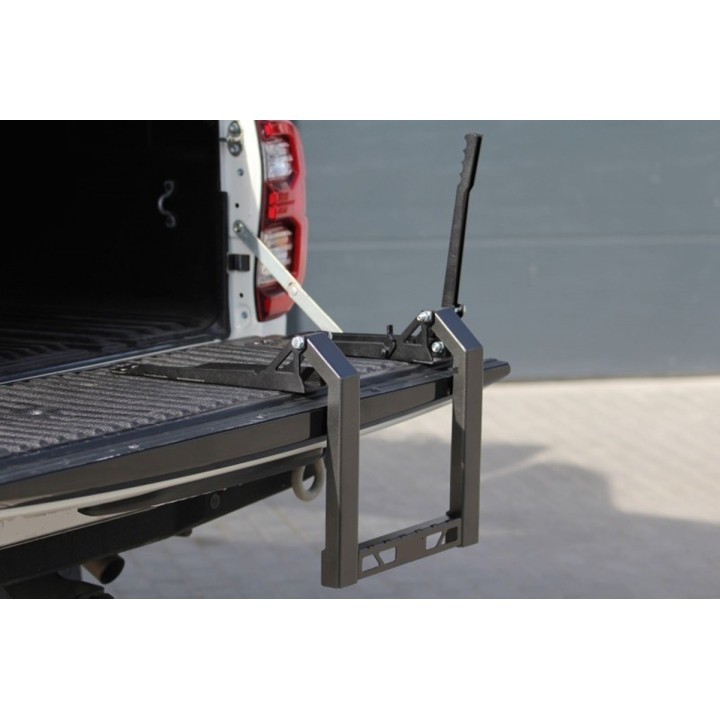

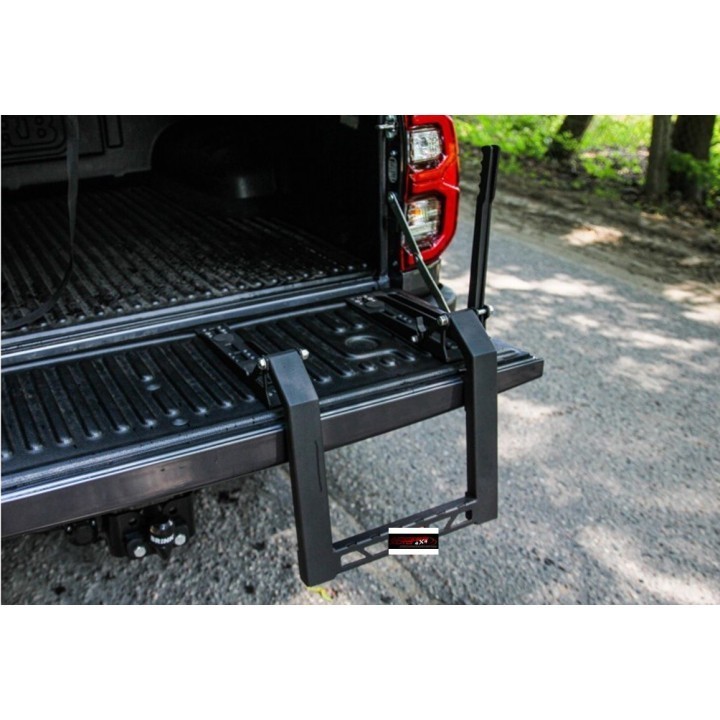

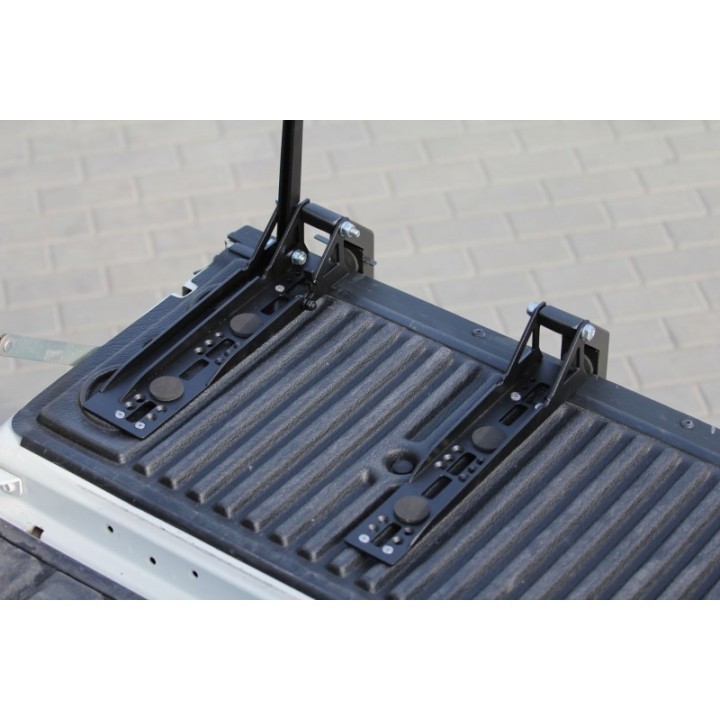

For proper installation, place the retractable step in the open position on the tailgate and carefully mark its position on the hatch. Then, mark the locations of the mounting holes (two at each end of each of the two step bases), which must be drilled with a 9 mm diameter drill bit into the vehicle's hatch, then install the rivet nuts included in the kit with the M6 screws into the holes. Remember that the rivet nuts must be mounted in the steel part of the vehicle's tailgate, which is often covered with a plastic flap coating.
The structure is made of 2 and 4 mm steel, galvanized and finished using a two-layer powder coating process.
easy installation - small footprint in the bed once folded
