NISSAN NAVARA D40 BED RACK LEDS MOUNTED ON RAILS FOR ROLLING COVER Length 137 to 152 cms Height 32cms 350kgs
Reference : ACFRRF00950GBGR32
NISSAN NAVARA D40
Double Cab or King Cab

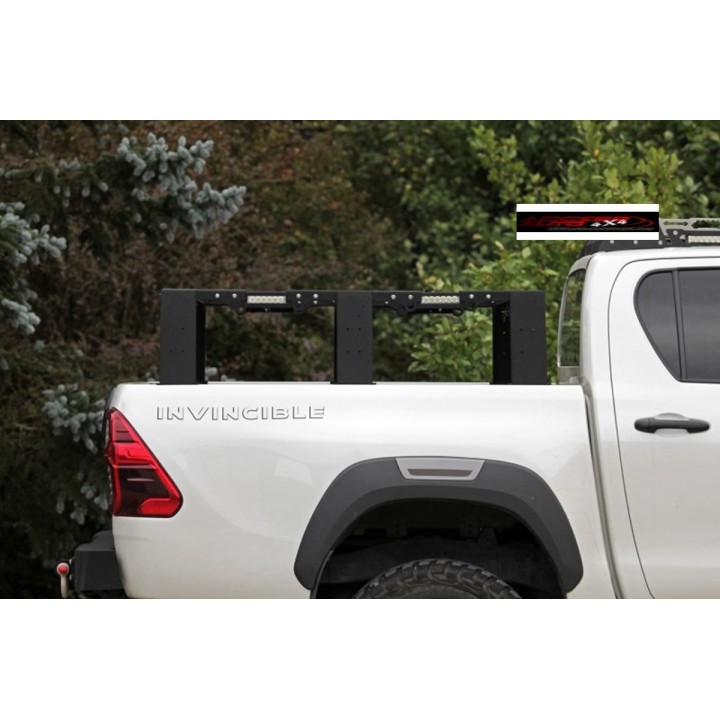

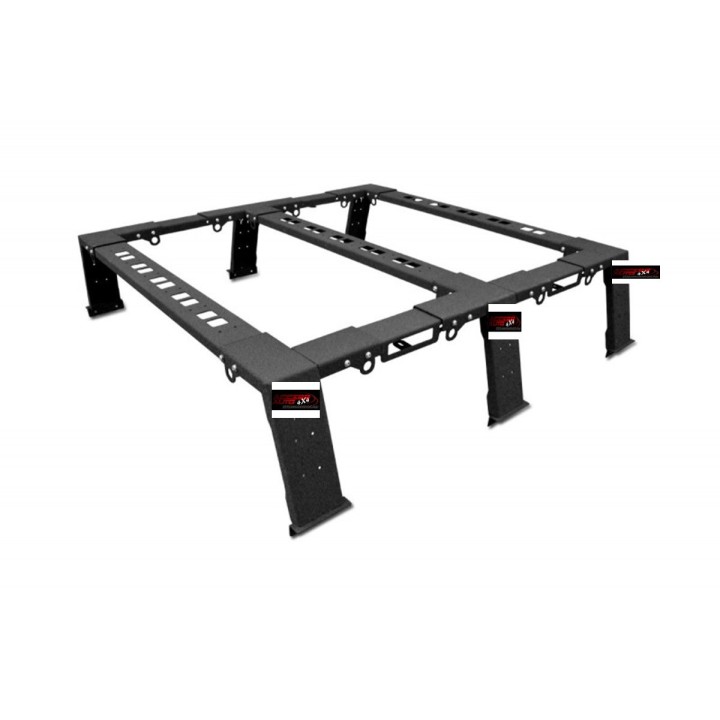

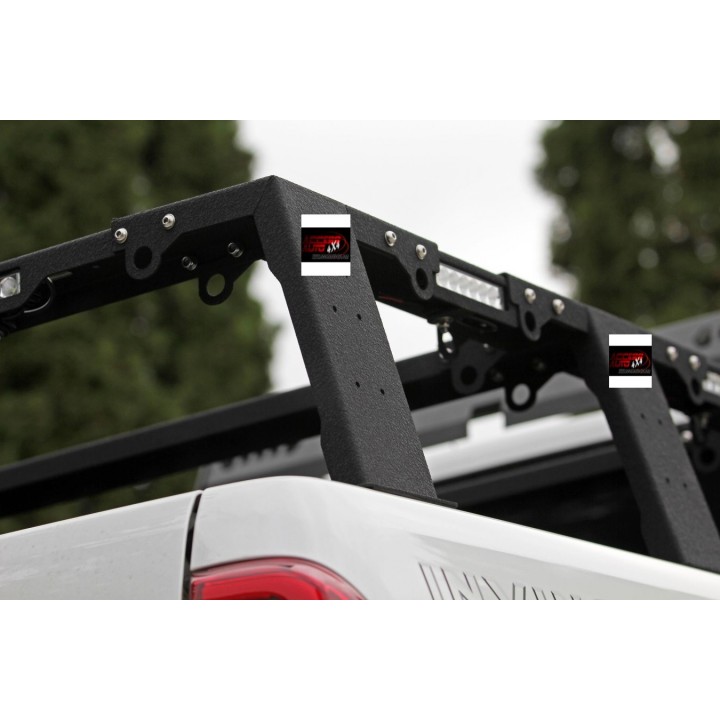

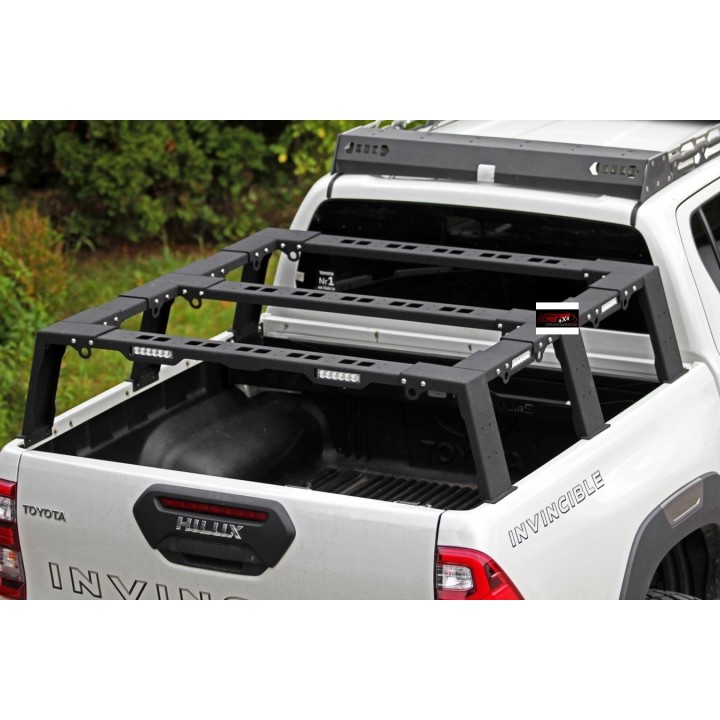

BLACK STEEL BED RACK with LEDS mounted on sliding cover rails:
Adjustment range of the bed rack:
- variable length: from 137 cm to 152 cm
- variable width: from 146 cm to 154 cm
- platform height: 32 cm
This Mark II bed rack is a solution for pickup owners looking to mount a rooftop tent or a support above the vehicle's bed.
Dedicated version for vehicles equipped with a sliding cover fitted with mounting rails along the entire length of the cover.
Thanks to the adjustable length and width of the structure, it fits all European Double, King, and Single Cab pickups.
For installation, place 12 screws inside the mounting rails of the rolling cover and screw them to the cover rails (screws are included).
In the case of sliding covers without mounting rails/grooves, special supports should be used, available separately:
- Mounting supports for sliding covers without rails (AC009)
To mount the supports on a sliding cover not equipped with mounting rails, cut a joint between the side beam of the cover and the side of the pickup where the support feet are mounted.
Each support is mounted with two M8 screws on the inner edge of the side panel of the pickup.
The frame is made of 3 mm thick steel and the support beams have a width of 12 cm.
Such a massive structure affects the durability of the bed support and its load capacity, which is: static 350 kg / dynamic 150 kg
The low version of the bed rack allows for the installation of a rooftop tent, which will be hidden behind the vehicle's cabin, without extending above its roof.
Delivered complete with hardware - mounting kit + installation manual

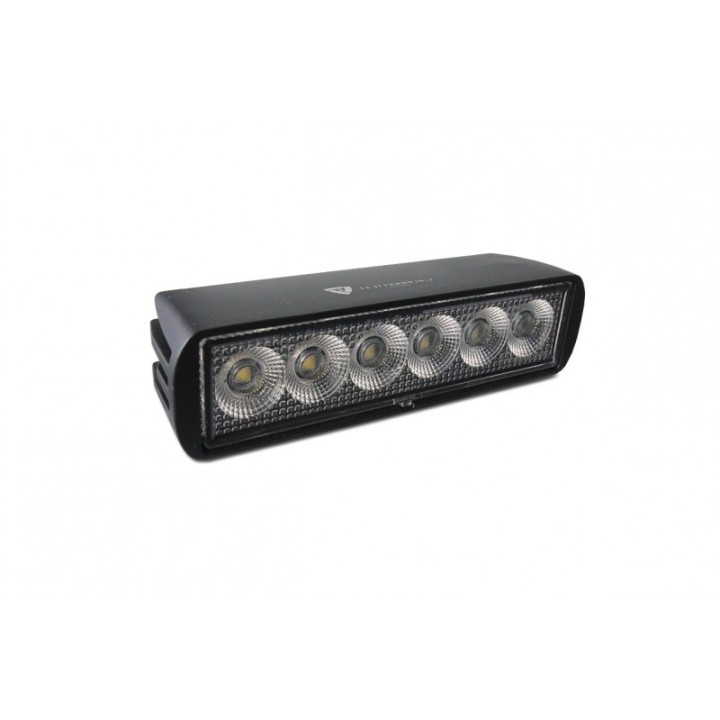

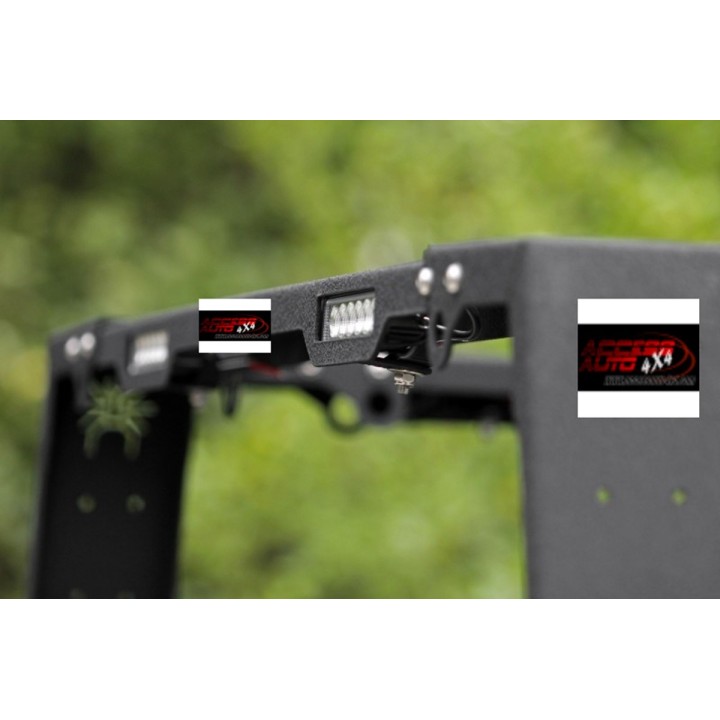

OPTIONAL 6 LEDS:
Diodes: OSRAM
- Power: 24 W
- Luminous flux: 1920 Lm
- Light color: 5700K (neutral white light)
- Noise reduction: CISPR 25 Class 4
- Waterproof for pressure washing: IP68/IP69K
