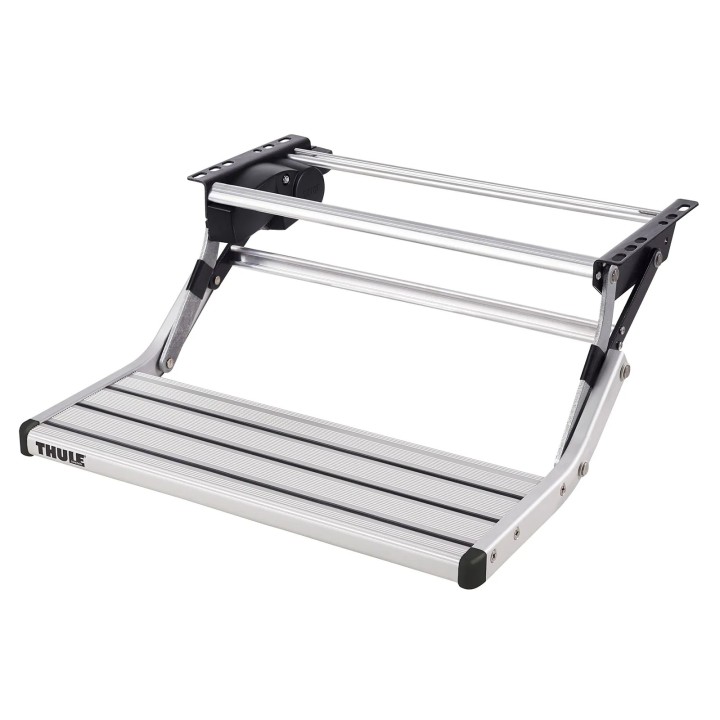

Electric Aluminum Step for Side Door Width 500mm
Reference : AC560350500
Electric Aluminum Step for Side Door Width 500mm:
Main Features
• Material: Fully aluminum (grooved and anodized).
• Load capacity: Supports up to 180 kg.
• Motorization: BOSCH 18W electric motor (12 Volt DC, protection index IP54), tested for one million cycles.
• Power consumption: Approximately 3 A.
• Maintenance: Maintenance-free (no lubrication required).
• Standards: Complies with automotive directive ECE R10.
Safety and Features
• Obstacle detection: If the step encounters an obstacle during opening or closing, it stops. After three blocking attempts, it deactivates and protects itself.
• Malfunction warning: An audible signal alerts the driver upon contact in case of a problem.
• Driving safety: The step does not open if the speed is over 5 km/h, and it automatically retracts if the vehicle exceeds this limit.
• Manual control: In case of electrical or mechanical failure, it can be disengaged via a pin located under the step.

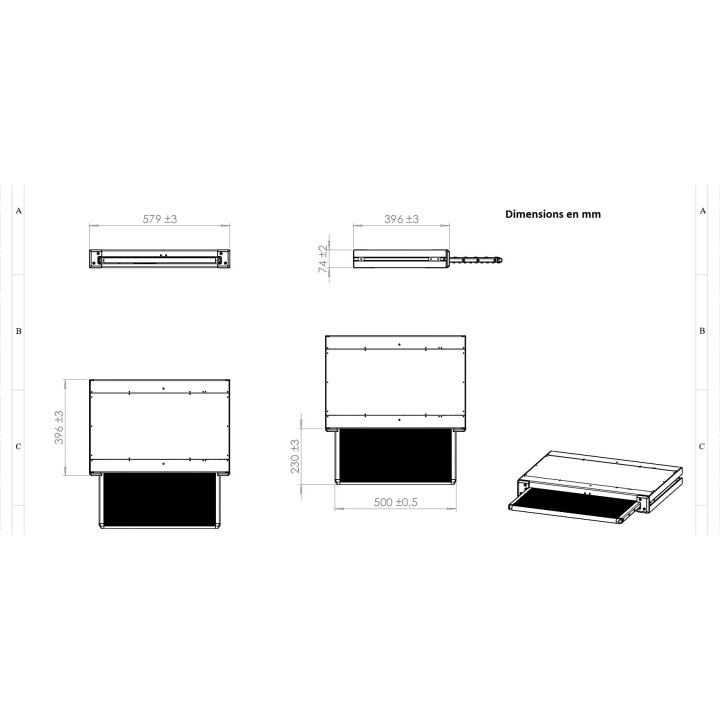

Available Dimensions
• Common standard widths (e.g., 400 mm, 600 mm, 700 mm, or even XL formats or custom sizes).
• Significant assembly time: 1 to 2 hours (delivered with all mounting parts).
SHIPPING TIME 1 WEEK
