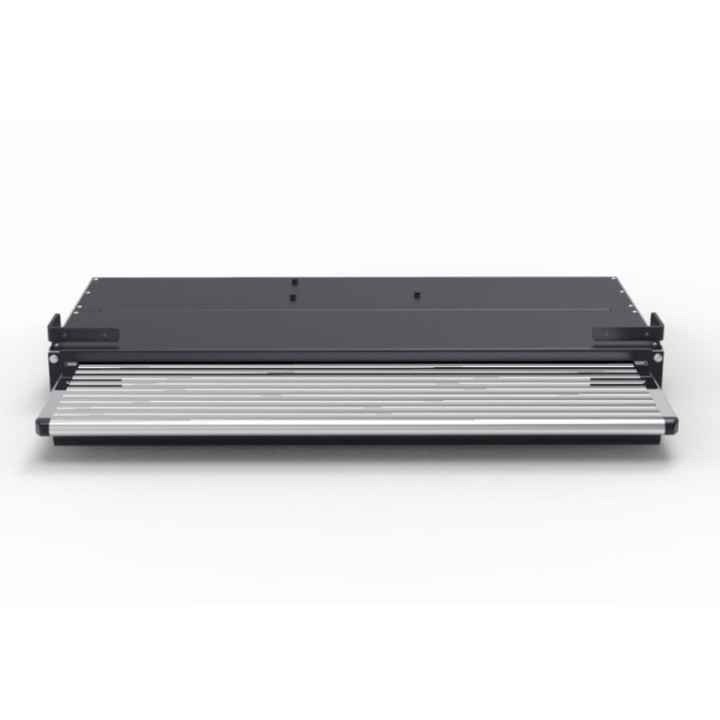

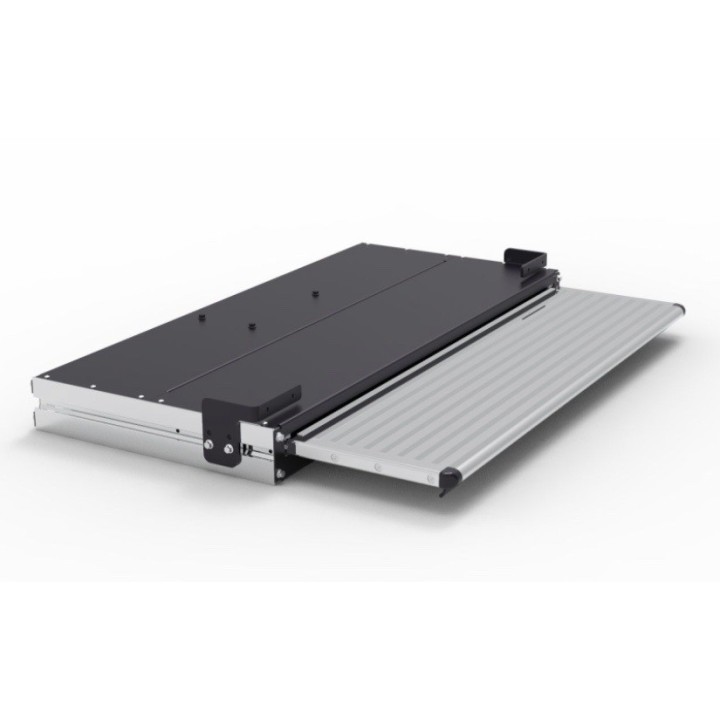

Electric Sliding Door Step 800mm PRO SERIES
Reference : AC350VD670
Electric Sliding Door Step 800mm PRO SERIES:
This electric sliding system is manufactured and mounted on the vehicle in accordance with international regulations.
The extendable electric steps can be adapted to all customer requirements.
If the step encounters an obstacle during opening, the overload protection will stop the step and it can be easily moved by hand.
The safety of passengers and the environment is our priority.
The sliding step system is manufactured in accordance with current regulations for installation
under the vehicle. The sliding step system is entirely made of galvanized material.
The movement of the step is ensured by a rack and pinion gear train.
The foot pressure area consists of 20 x 20 mm solid aluminum side steps and
a 20 mm thick laminated aluminum profile material.
The foot pressure area is entirely made of aluminum materials.
The bulges on the aluminum surface prevent slipping.
Sliding bearings are used in our step system.
The motor used in our Power Step system is an IP54 rated motor.
The motor is specially protected to ensure water resistance.
The system has successfully passed 1,000,000 opening and closing tests.
Thanks to their rigid structure, our stairs can operate smoothly and safely on floors inclined at 30 degrees.
The system has passed the EMC test and has been certified in accordance with the automotive electromagnetic compatibility directive (EMC R10).
In the event of mechanical or electrical failures, the rest of the step is deactivated by moving the pin screw under the step.
If a step is blocked, the step will be closed. If the step locks three times, the step will be turned off. Then, the step will be secured and will not slip.
The Veldo step system is shipped with all parts to be assembled. It allows for easy installation.
In addition to standard dimensions, the step can be manufactured in desired dimensions.
Our product is guaranteed in accordance with the warranty conditions.
The step can be installed in all commercial vehicles (FIAT DUCATO , FIAT SCUDO , PEUGEOT BOXER , CITROEN JUMPER , CITROEN JUMPY , PEUGEOT EXPERT , FORD TRANSIT , RENAULT TRAFIC , MAN TGE , MERCEDES VITO , VOLKSWAGEN CRAFTER , VOLKSWAGEN TRANSPORTER , TOYOTA PROACE etc.....)
TECHNICAL DATA :
Voltage: 12 DCV
Rated current: 1.5 – 3 A
Electric motor: Bosch 18 W
Protection: IP54
Step depth: 232 mm
Step width: 880 mm
Height: 73 mm
Product included: gear set
Maximum load: 180 kg
Opening time: 2 seconds
Weight (kg): 11.60 kg
MATERIAL
2 mm aluminum housing
Deep rails
Gear set
20 mm aluminum base
SHIPPING TIME 1 WEEK
