Rear Air Suspension KIT for CITROEN JUMPER 2006 TO TODAY with Compressor and Specific Control Panel

CITROEN JUMPER

(2006 - TODAY-)

MECHANICAL OR ELECTRIC HANDBRAKE

REAR AIR SUSPENSION KIT + COMPRESSOR AND SPECIFIC CONTROL PANEL FOR CITROEN JUMPER 2006 TO TODAY:

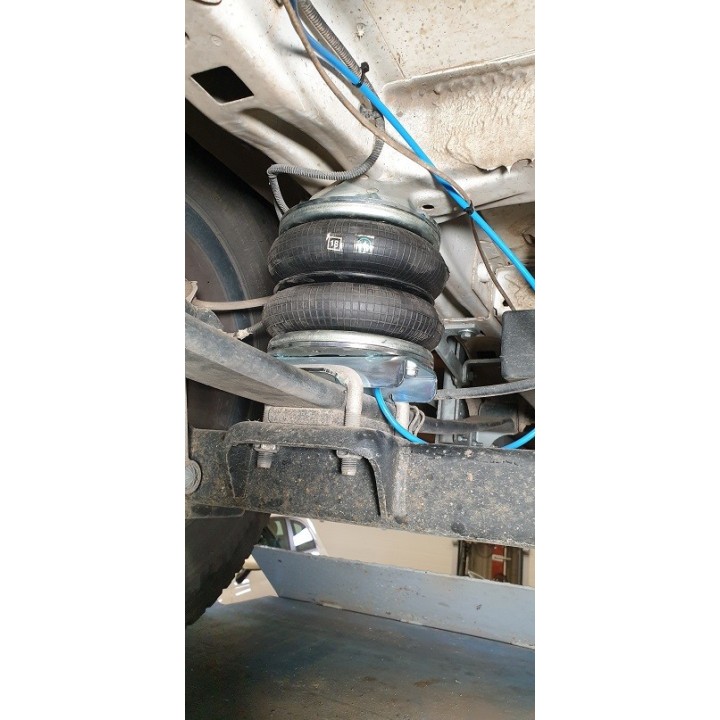

The MAD Air suspension, a model adapted for Fiat Ducato, Citroën Jumper and Peugeot Boxer 2006+, is in most cases designed to work with the car's original rear leaf spring suspension (semi-air suspension).

Air suspension is available in different variants and is suitable for car owners who want to be able to adjust the stiffness of their suspension themselves.

Air suspension is available with manual filling as you need access to air to fill the bellows to the desired pressure.

It is also available with a compressor and a pressure gauge so you can set the desired pressure yourself, even while driving.

Then there is a full air suspension that compensates for the car's original suspension and automatically adjusts the load level.

If your car is equipped with an electronic handbrake as shown in images 10 to 13, you select this choice from the drop-down menu,

if your car is equipped with an ordinary mechanical handbrake "the one you pull yourself", then you choose this variant.

By installing air suspension on your car, you get a completely different driving experience, whether you are driving loaded or unloaded.

All air suspensions are model-specific to match your particular car model.

With air suspension, you can also adjust the height of the rear of your vehicle on specific occasions if you need higher ground clearance.

Comfort and safety reach a whole new level with MAD air suspension.

*Good examples of cases where it might be good for you to be able to gain more height at the rear are when you need to get on and off a ferry,

park the motorhome in a parking space or have to cross a high obstacle.

This particular air suspension kit with compressor and pressure gauge is incredibly good if you own a "Plåtis" motorhome or a motorhome

for which you want the best air suspension on the market. Motorhomes are already heavily built from the start and need to reinforce their rear suspension.

A tin box or motorhome will be much better with MAD air bellows at the rear.

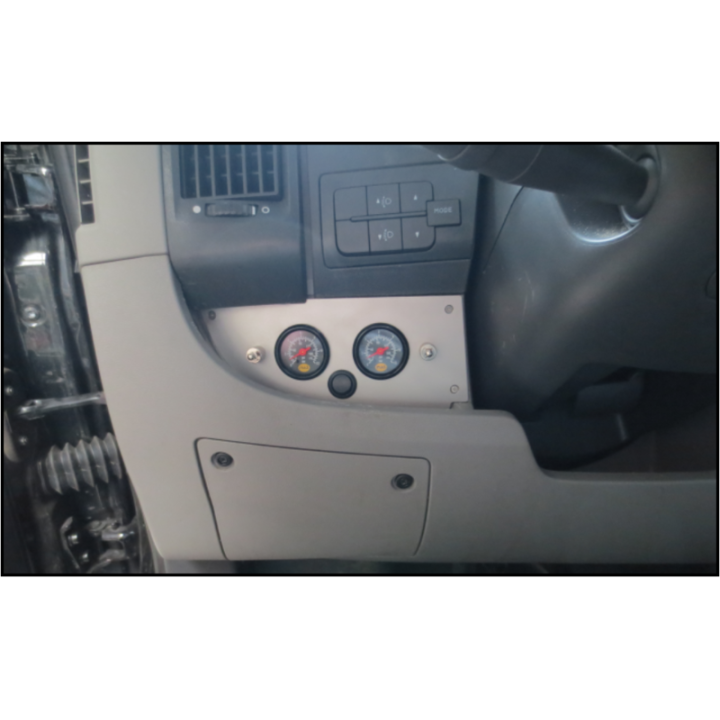

This kit includes a 2-way compressor and pressure gauges as shown in the image. The control panel is model-specific and is mounted on the left side of the steering wheel.

You can easily adjust the right and left bellows individually while driving and, with a simple press of a button downwards,

you can also release air from the bellows if necessary.

We recommend the installation of this product by an automotive professional.

MAD specializes in suspension and air suspension for passenger cars, vans, motorhomes and other special transports.

MAD has a large development department that works solely to produce the best materials and the most suitable fixings for your vehicle model

without affecting other details or warranties of the car. The quality at MAD is the highest of all manufacturers and by producing large series of products,

Compatible with the following car models:

• This kit is suitable for the following front-wheel drive vehicles:

  - Citroën Jumper Y, 250, 290 vehicles from 04/2006 (all engines including e-Jumper)

  - Fiat Ducato 250, 290 vehicles from 07/2006 (all engines including e-Ducato)

  - Peugeot Boxer Y, 250, 290 vehicles from 04/2006 (all engines including e-Boxer)

  - Opel Movano MK III/C (U9) vehicles from 07/2021 (all engines, including Movano-e)

  Attention: this kit is for front-wheel drive vehicles with chassis-cab and control panel at the seat frame level. It can be used for vehicles equipped with an electronic handbrake.

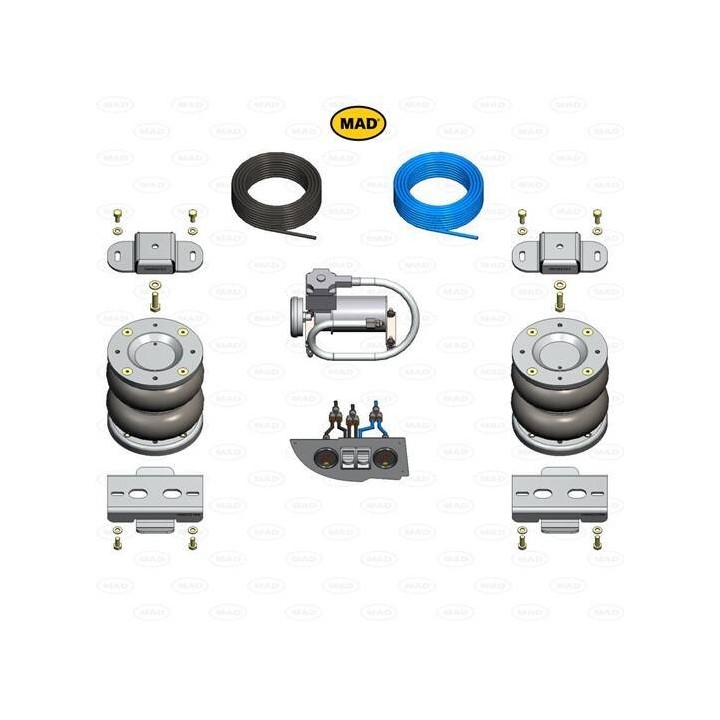

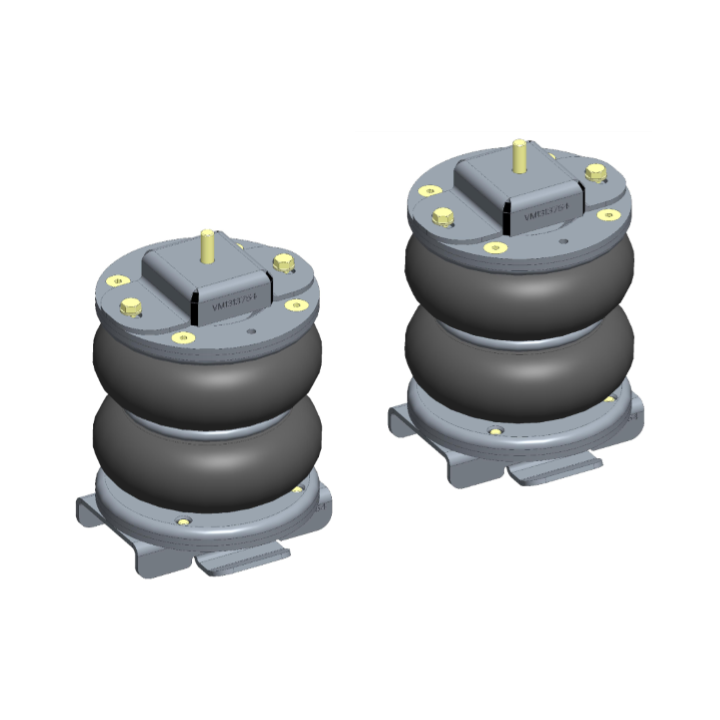

  The Air Master Comfort includes two air cushions and mounting hardware, a compressor, and a dual control panel. The compressor offers even more comfort and flexibility on the road. The auxiliary air suspension can be adjusted separately left and right via the supplied control panel.

You get the best results if the air bellows are mounted with a compressor. You can then partly adjust the air pressure in your bellows via a simple push of a button inside the car's cabin, but you also avoid the risk of destroying the bellows with too high or too low pressure because you are constantly aware of what pressure you have.

Air suspension has the advantage of being able to have different hardness in the right and left bellows, which can be a big advantage if, for example, you have more load on one side of your vehicle. Air suspension also generally supports heavier loads than a steel spring, but it should be emphasized that an air spring does not feel good under constant and heavy load, so in these cases, e.g. a robust steel spring would be better.

Product specifications:

• Minimum pressure in empty air bellows 0.5 BAR
• Minimum and maximum pressure under load 1.0 - 3.0 BAR (6.0 BAR for shorter occasions)
• Less wear on your tires
• The best air bellows on the market
• Does not affect car warranties
• Easy to install
• Reduced sensitivity to crosswinds
• All MAD products are TUV approved and approved by inspection
• Better quality and fit
• All kits are available with and without compressor
• 2-year material warranty without compressor
• 3-year material warranty with compressor (Electronics 1 year)

Main features

MAD's suspension system is there to compensate for different load weights and to support and assist the car's original spring system

so that you maintain safety and comfort even at the maximum permitted load. Suspensions never increase the maximum permitted load weight for the car.

SHIPPING TIME WITHIN 1-2 WEEKS
