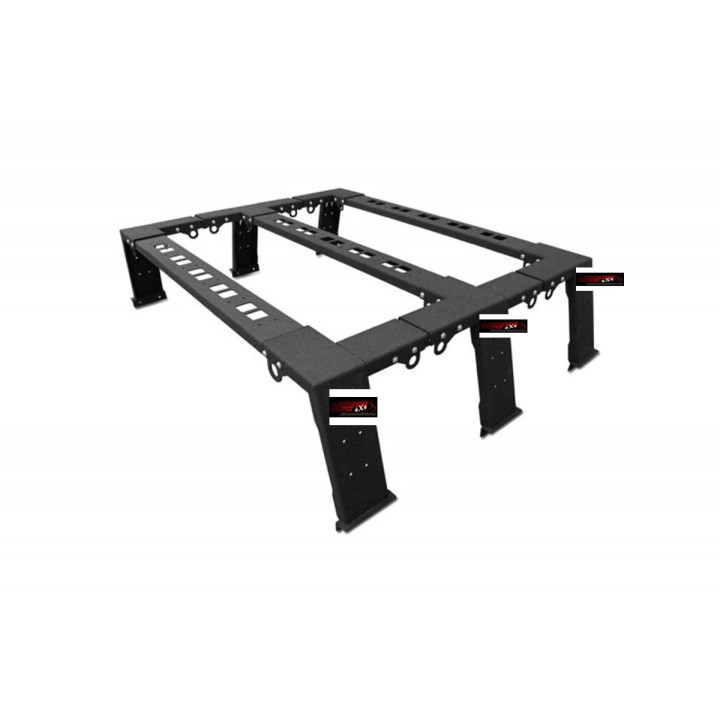

JEEP GLADIATOR PRO X BED RACK Length 82 93 cms Height 32 cms 350kgs
Reference : ACFRRF00950PROX32S
JEEP GLADIATOR DOUBLE CAB
(2019 - TODAY-)
IDEAL FOR INSTALLATION WITH ROLL BAR OR BED HOOP

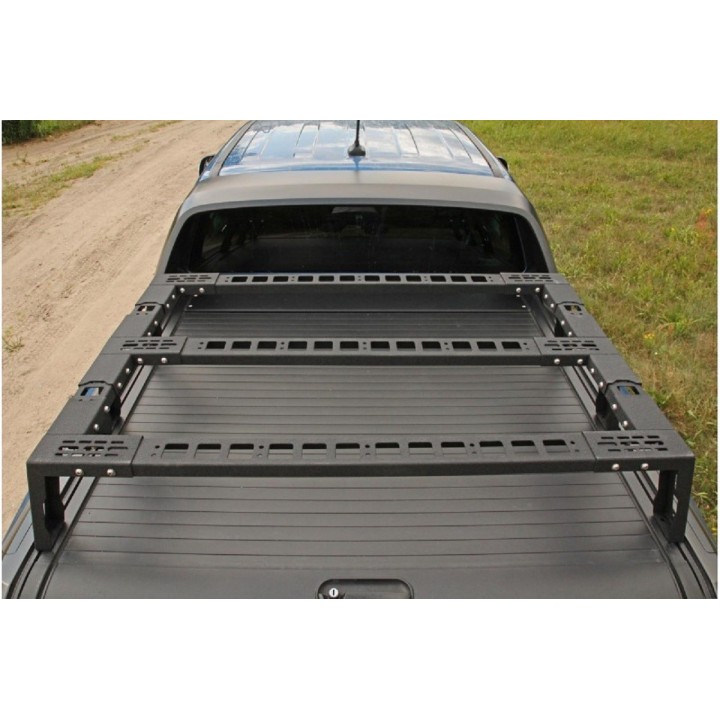

PRO X BLACK STEEL BED RACK installation on sliding tonneau cover rails:
Bed rack adjustment range:
- variable length : from 82 cm to 93 cm
- variable width : from 146 cm to 154 cm
- platform height: 32 cm

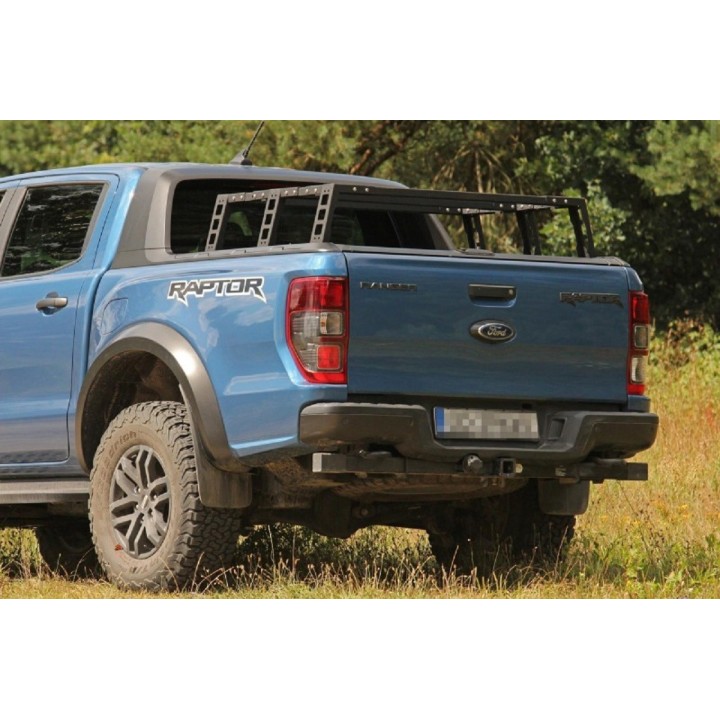

This PRO X bed rack is a solution for pickup owners who plan to mount a roof tent or a support above the vehicle's bed.
Version dedicated to vehicles equipped with a sliding tonneau cover with mounting rails along the entire length of the tonneau cover.
Thanks to the adjustable length and width of the structure, it fits all European Double, King and Single Cab pickups.

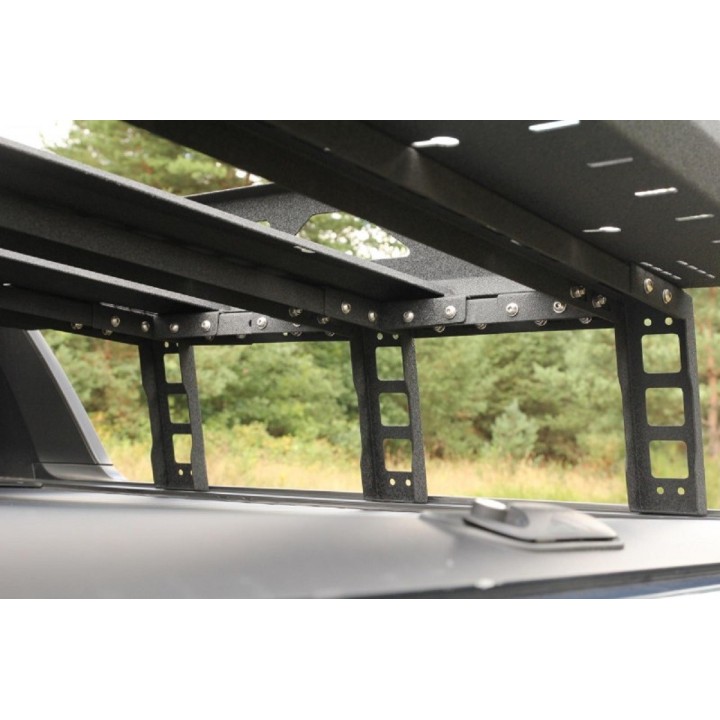

For installation, place 12 screws inside the roller shutter mounting rails and screw them to the tonneau cover rails (screws are included).
In the case of a sliding tonneau cover without mounting rails/channels, special supports should be used, available separately:
- Mounting brackets for sliding tonneau covers without rails (AC009)
To mount the fixings on a sliding tonneau cover not equipped with mounting rails, cut a seal between the side beam of the tonneau cover and the side of the pickup where the bed support feet are mounted.
Each support is mounted with two M8 screws on the inner edge of the pickup's side panel.

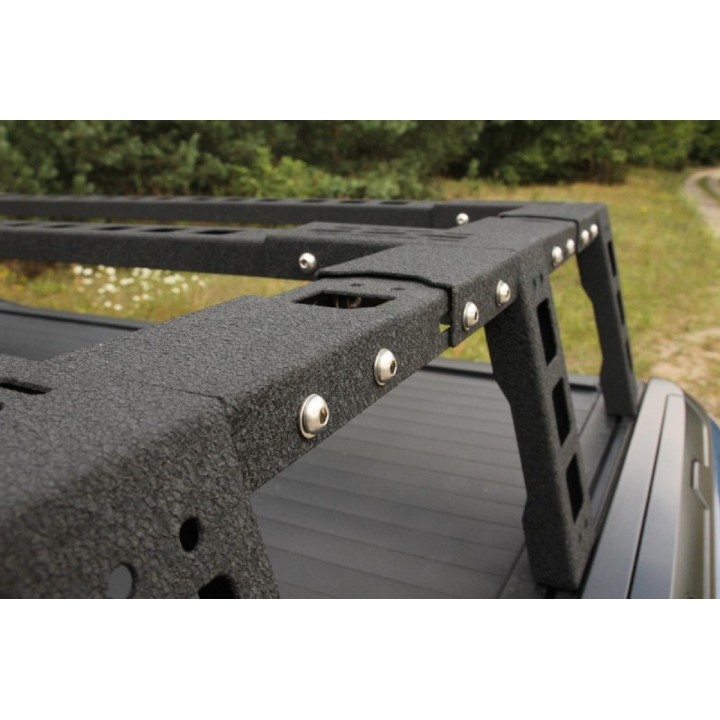

The frame is made of 3 mm thick steel and the support beams have a width of 12 cm.
Such a massive structure affects the durability of the bed support and its load capacity, which is: static 350 kg / dynamic 150 kg
The low version of the bed rack allows the installation of a roof tent, which will be hidden behind the vehicle's cabin, without extending above its roof.

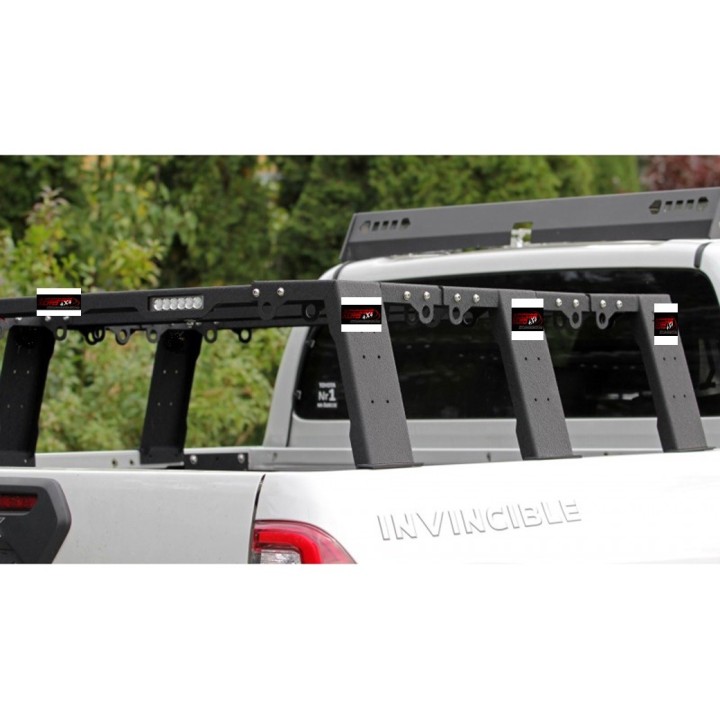

OPTIONAL 6 LEDS :
Diodes : OSRAM
- Power : 24 W
- Luminous flux : 1920 Lm
- Light color : 5700K (neutral white light)
- Noise reduction : CISPR 25 Class 4
- Waterproof for pressure washing : IP68/IP69K
Delivered complete with screws - fixing kit + assembly instructions
