ISUZU D-MAX BED RACK 2012 2020 Leds mounting on bed cover rails Length 82 to 93 cms Height 57cms 350kgs
Reference : ACFRRF00950GBGR57B
ISUZU D-MAX (with sliding bed cover - version equipped with a bed roll bar or roll bar)
(2012 - 2020)
Crew Cab or Space Cab

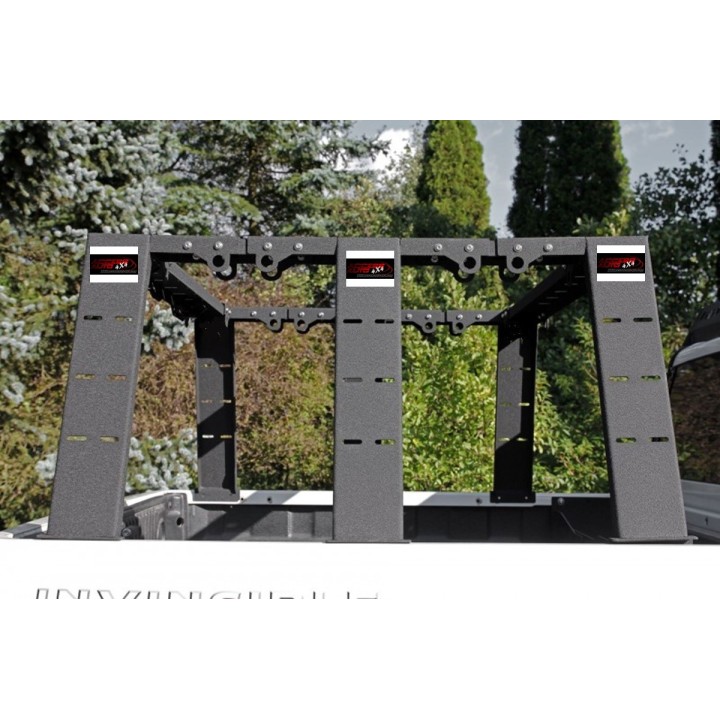

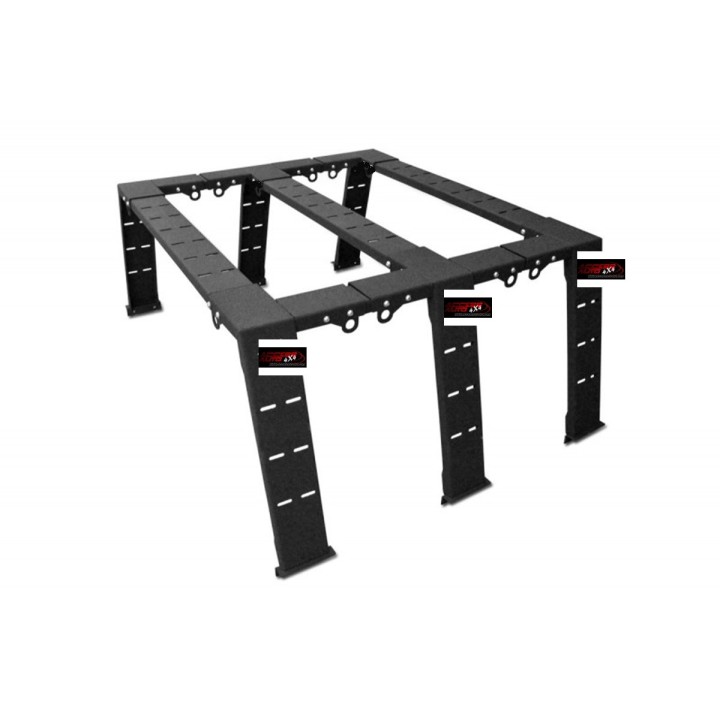

BLACK STEEL BED RACK with LEDS (option) - mounting on sliding bed cover rails:
Bed rack adjustment range:
- length: from 82 cm to 93 cm
- width: from 146 cm to 154 cm
- platform height: 57 cm

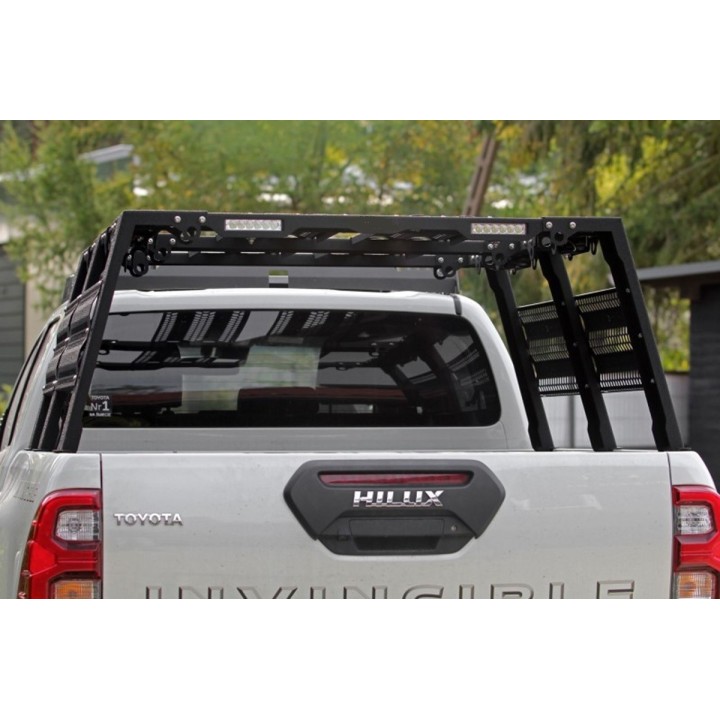

This PRO X bed rack is a solution for pick-up owners who plan to mount a roof tent or a support above the vehicle's bed.
Version dedicated to vehicles equipped with a sliding bed cover with fixing rails along the entire length of the bed cover.
Thanks to the adjustable length and width of the structure, it adapts to all European Double, King and Single Cab pickups.

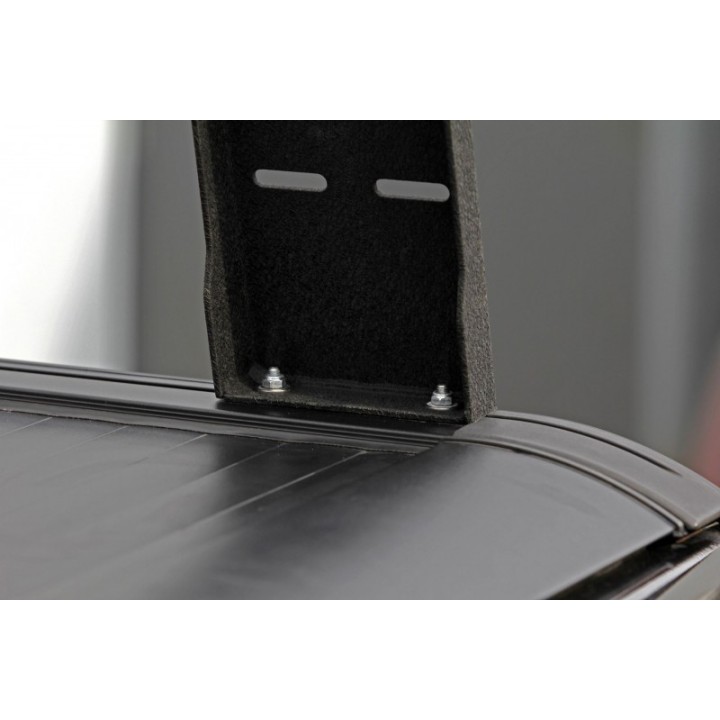

For installation, place 12 screws inside the roller shutter mounting rails and screw them to the bed cover rails (screws are included).
In the case of a sliding bed cover without mounting rails/channels, special supports, available separately, should be used:
- Fixing supports for sliding bed covers without rails (AC009)
To mount the fixings on a sliding bed cover not equipped with mounting rails, cut a seal between the side beam of the bed cover and the side of the pick-up where the feet of the bed support are mounted.
Each support is mounted with two M8 screws on the inner edge of the pick-up's side panel.
The frame is made of 3 mm thick steel and the support beams have a width of 12 cm.
Such a massive structure affects the durability of the bed support and its load capacity, which is: static 350 kg / dynamic 150 kg

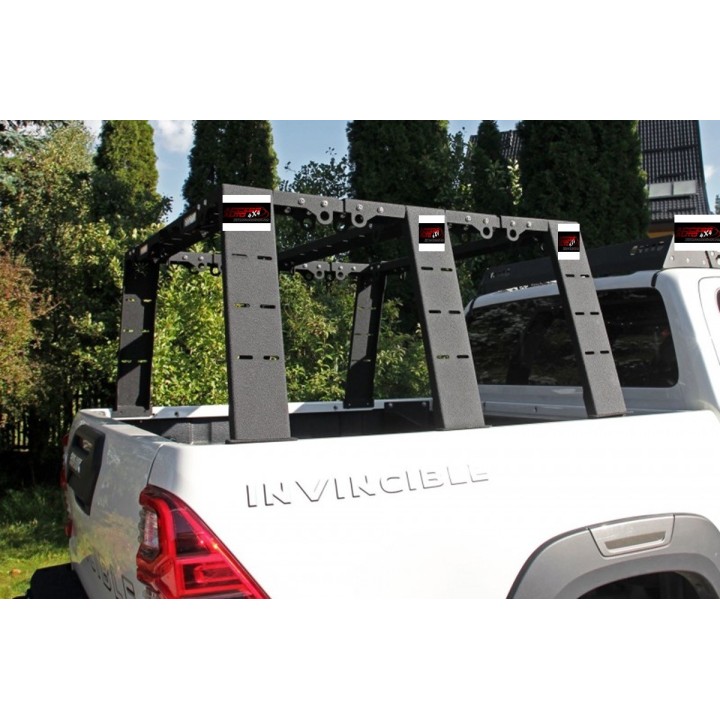

The high version of this bed rack allows mounting a roof tent but also accessories on the sides of the rack thanks to the side plates.

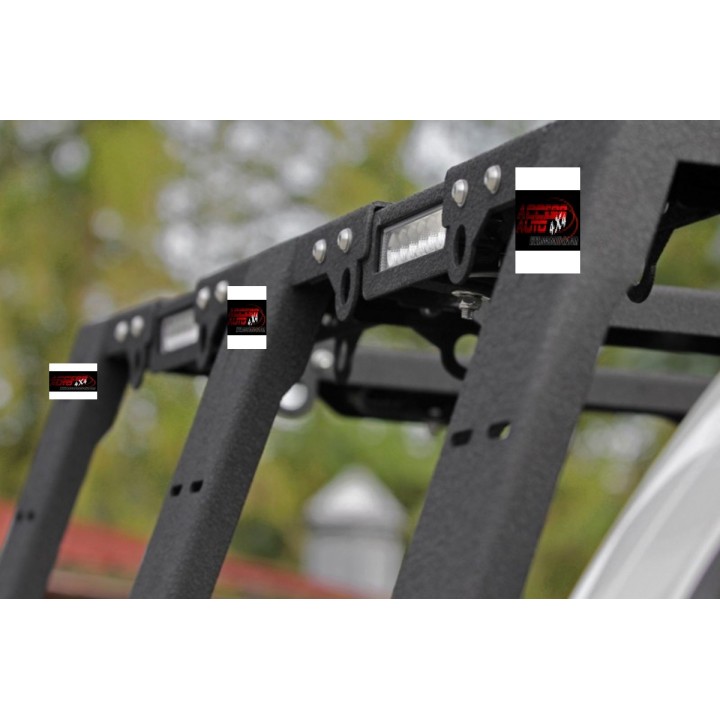

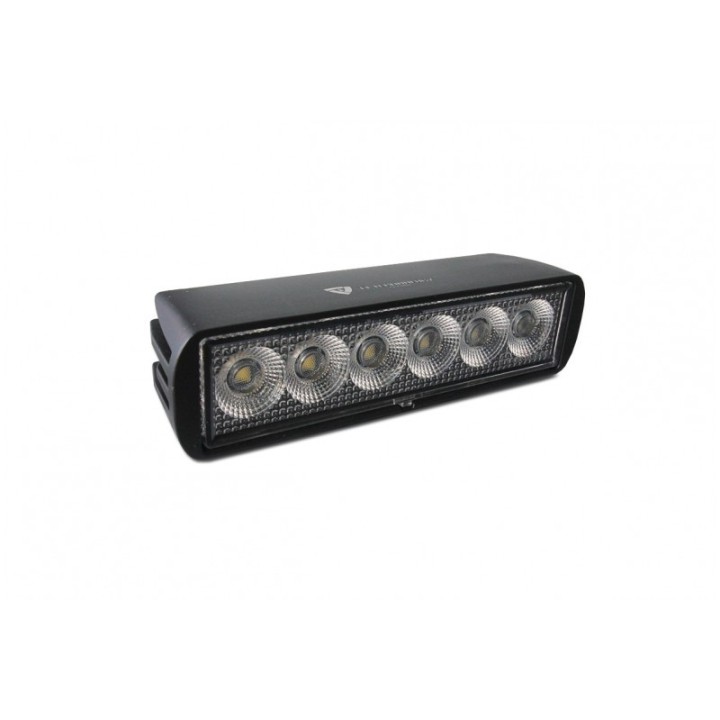

OPTIONAL 6 LEDS:
Diodes: OSRAM
- Power: 24 W
- Luminous flux: 1920 Lm
- Light color: 5700K (neutral white light)
- Noise reduction: CISPR 25 Class 4
- Waterproof for pressure washing: IP68/IP69K
Delivered complete with screws - fixing kit + assembly instructions
