FIAT FULLBACK BED RACK 2016 TO PRESENT Leds mounting on tonneau cover rails Length 82 to 93 cms Height 50cms 350kgs
Reference : ACFRRF00950GBGR50B
FIAT FULLBACK (with sliding tonneau cover - version equipped with a bed hoop or roll bar)
(2016 - TODAY-)
Double Cab or Extra Cab

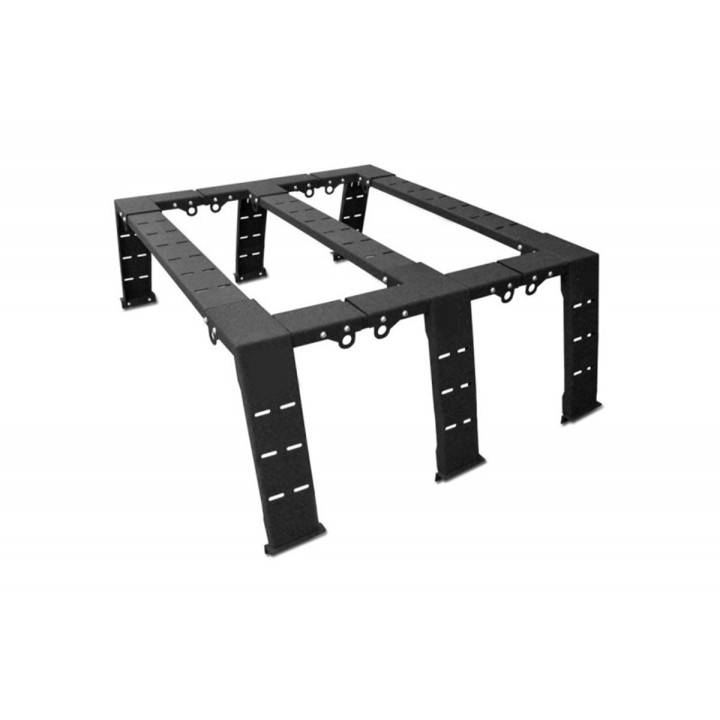

BLACK STEEL BED RACK with LEDS (option) - mounting on sliding tonneau cover rails:
Bed rack adjustment range:
- length: from 82 cm to 93 cm
- width: from 146 cm to 154 cm
- platform height: 50 cm

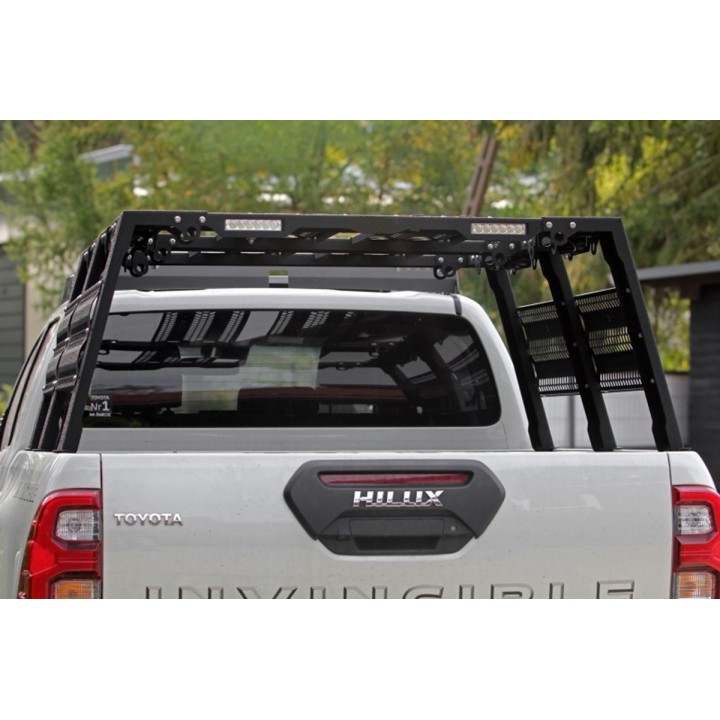

This PRO X bed rack is a solution for pickup owners who plan to mount a roof tent or a support above the vehicle's bed.
Version dedicated to vehicles equipped with a sliding tonneau cover with mounting rails along the entire length of the tonneau cover.
Thanks to the adjustable length and width of the structure, it fits all European Double, King, and Single Cab pickups.
For installation, place 12 screws inside the roller shutter mounting rails and screw them to the tonneau cover rails (screws are included).
In the case of a sliding tonneau cover without mounting rails/channels, special supports, available separately, should be used:
- Mounting brackets for sliding tonneau covers without rails (AC009)
To mount the fixings on a sliding tonneau cover not equipped with mounting rails, cut a seal between the side beam of the tonneau cover and the side of the pick-up where the feet of the bed support are mounted.
Each support is mounted with two M8 screws on the inner edge of the pickup's side panel.
The frame is made of 3 mm thick steel and the support beams are 12 cm wide.
Such a massive structure affects the durability of the bed support and its load capacity, which is: static 350 kg / dynamic 150 kg

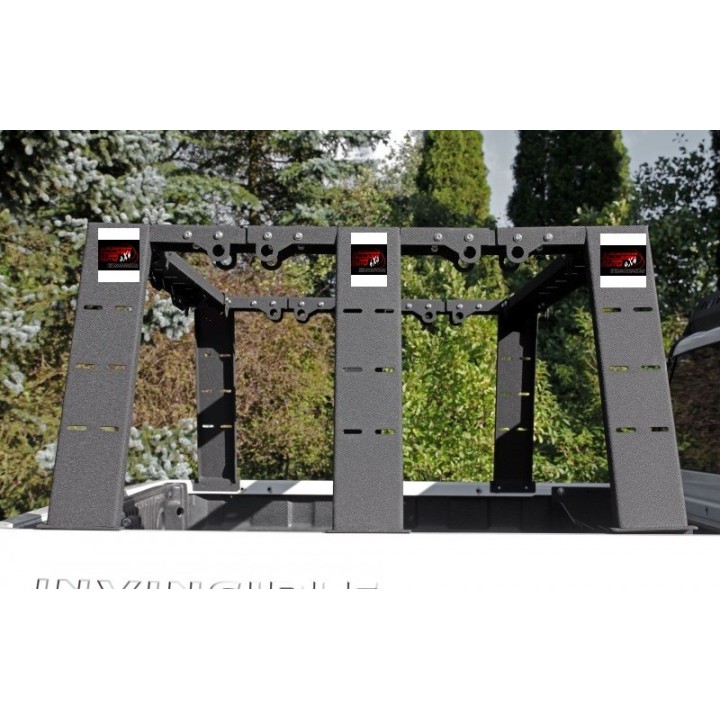

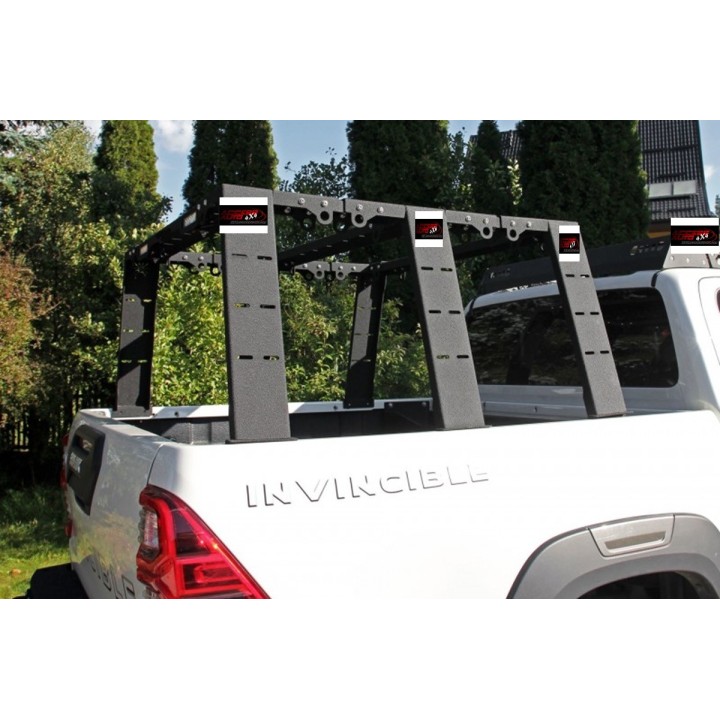

The high version of this bed rack allows for mounting a roof tent but also accessories on the sides of the rack thanks to the side plates.

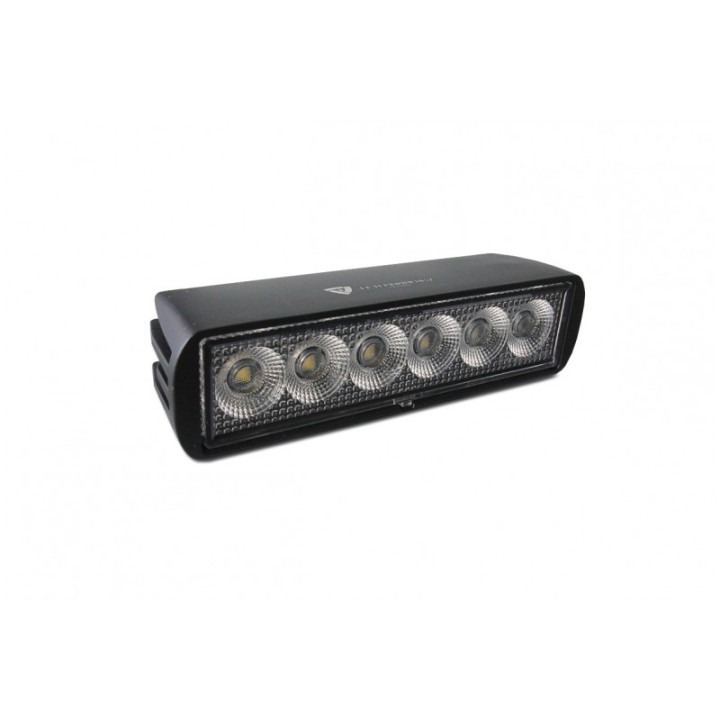

OPTIONAL 6 LEDS:
Diodes: OSRAM
- Power: 24 W
- Luminous flux: 1920 Lm
- Light color: 5700K (neutral white light)
- Noise reduction: CISPR 25 Class 4
- Waterproof for pressure washing: IP68/IP69K
Delivered complete with screws - fixing kit + assembly instructions
