FORD RANGER RAPTOR BED RACK Leds mounting on tonneau cover rails Length 137 to 152 cm Height 32 cm 350 kg
Reference : ACFRRF00950GBGR32
FORD RANGER RAPTOR (version not equipped with a bed roll bar)
(2023 TO PRESENT-)
Double Cab

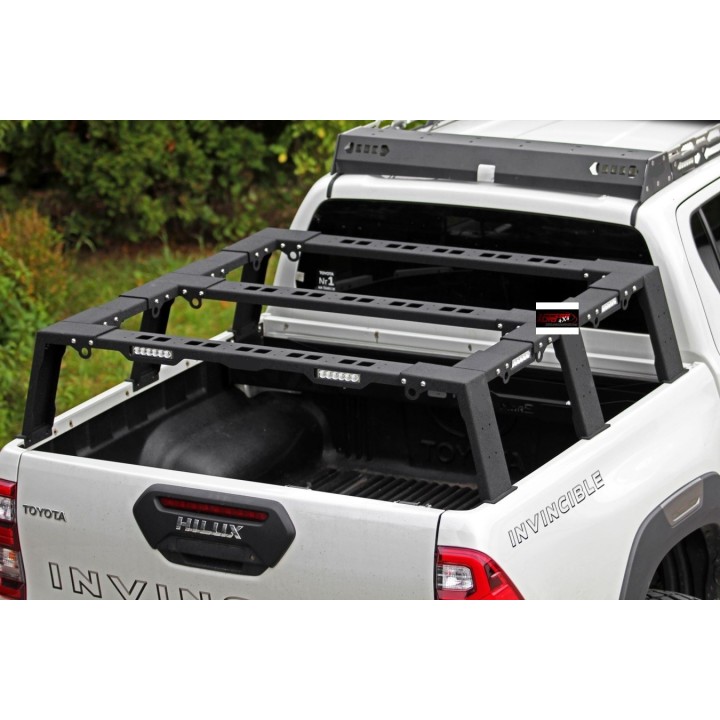

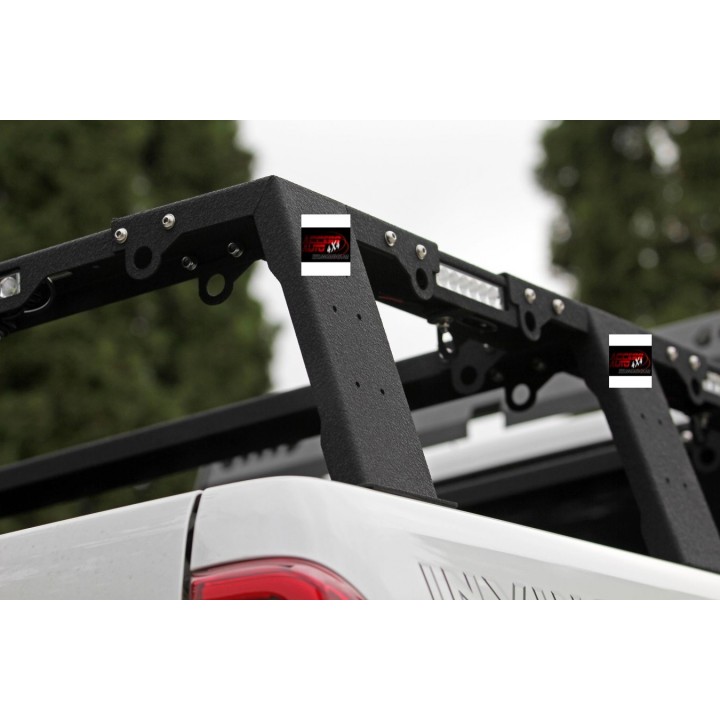

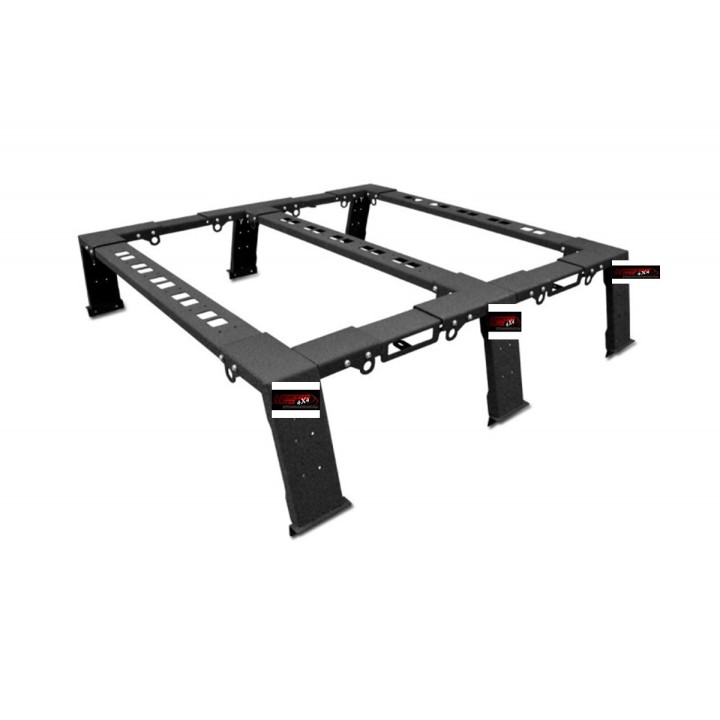

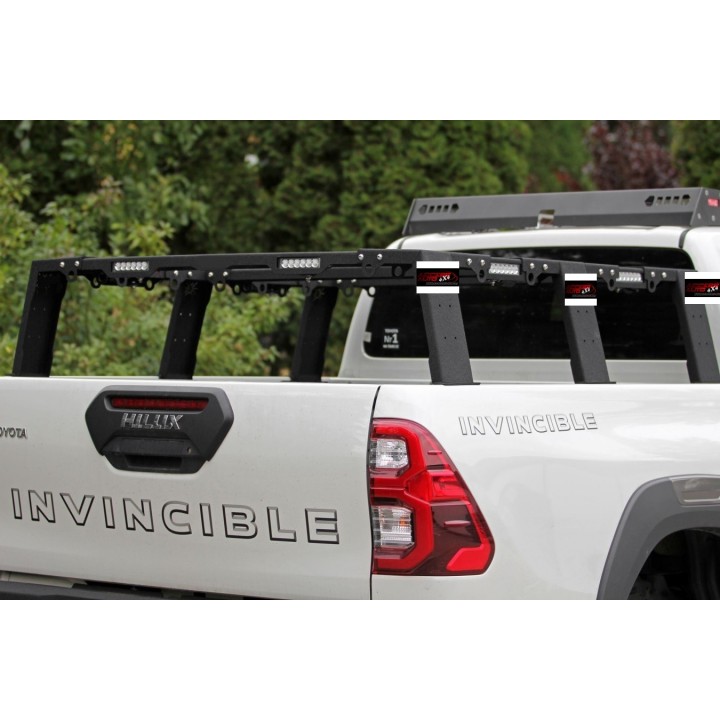

BLACK STEEL BED RACK with LEDS mounting on sliding tonneau cover rails:
Bed rack adjustment range:
- variable length: from 137 cm to 152 cm
- variable width: from 146 cm to 154 cm
- platform height: 32 cm
This Mark II bed rack is a solution for pickup owners who are considering mounting a roof tent or a rack above the vehicle's bed.
Version dedicated to vehicles equipped with a sliding tonneau cover with mounting rails along the entire length of the tonneau cover.
Thanks to the adjustable length and width of the structure, it fits all European Double, King, and Single Cab pickups.
For installation, place 12 screws inside the mounting rails of the roller shutter and screw them to the tonneau cover rails (screws are included).
In the case of a sliding tonneau cover without mounting rails/channels, special brackets, available separately, should be used:
- Mounting brackets for sliding tonneau covers without rails (AC009)
To mount the fasteners on a sliding tonneau cover not equipped with mounting rails, cut a seal between the side beam of the tonneau cover and the side of the pickup where the bed rack feet are mounted.
Each bracket is mounted with two M8 screws on the inner edge of the pickup's side panel.
The frame is made of 3 mm thick steel and the support beams are 12 cm wide.
Such a massive structure affects the durability of the bed rack and its load capacity, which is: static 350 kg / dynamic 150 kg

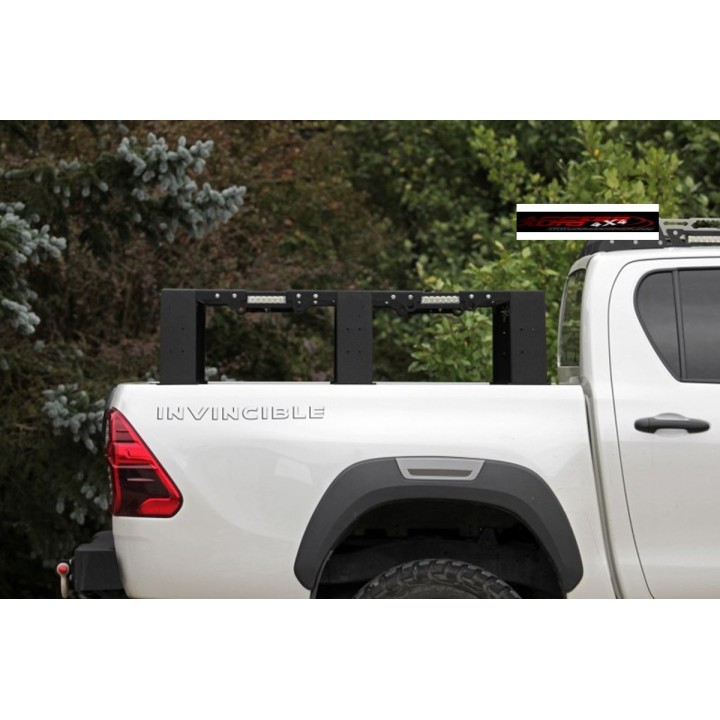

The low version of the bed rack allows for the installation of a roof tent, which will be hidden behind the vehicle's cabin, without extending above its roof.
Delivered complete with screws - fixing kit + assembly instructions

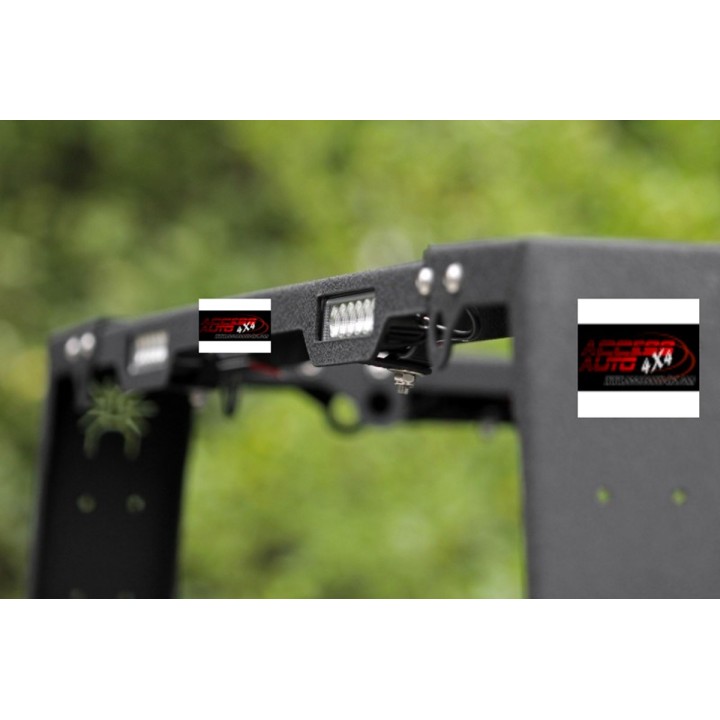

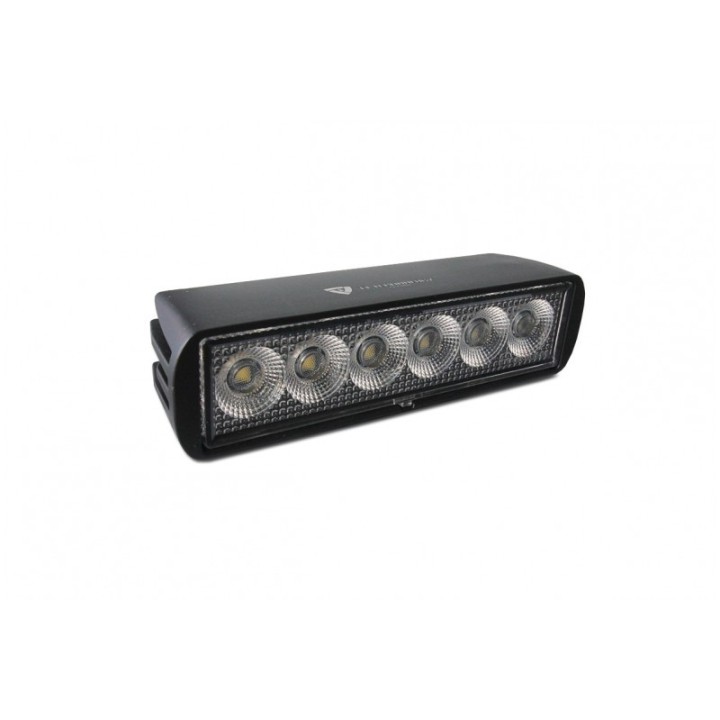

OPTIONAL 6 LEDS :
Diodes: OSRAM
- Power: 24 W
- Luminous flux: 1920 Lm
- Light color: 5700K (neutral white light)
- Noise reduction: CISPR 25 Class 4
- Waterproof for pressure washing: IP68/IP69K
