ISUZU D-MAX BED RACK Leds mounting on tonneau cover rails Length 137 to 152 cms Height 57cms 350kgs
Reference : ACFRRF00950GBGR57
ISUZU D-MAX
Crew Cab or Space Cab

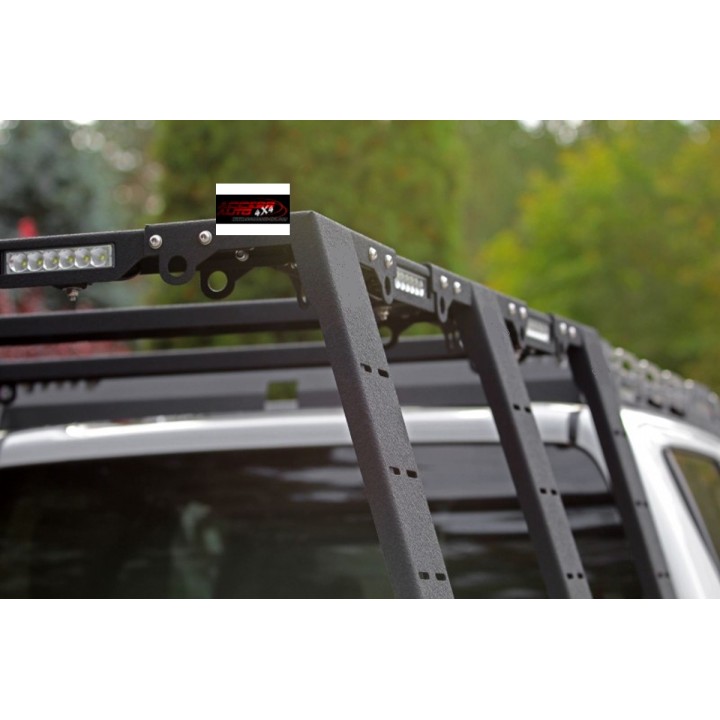

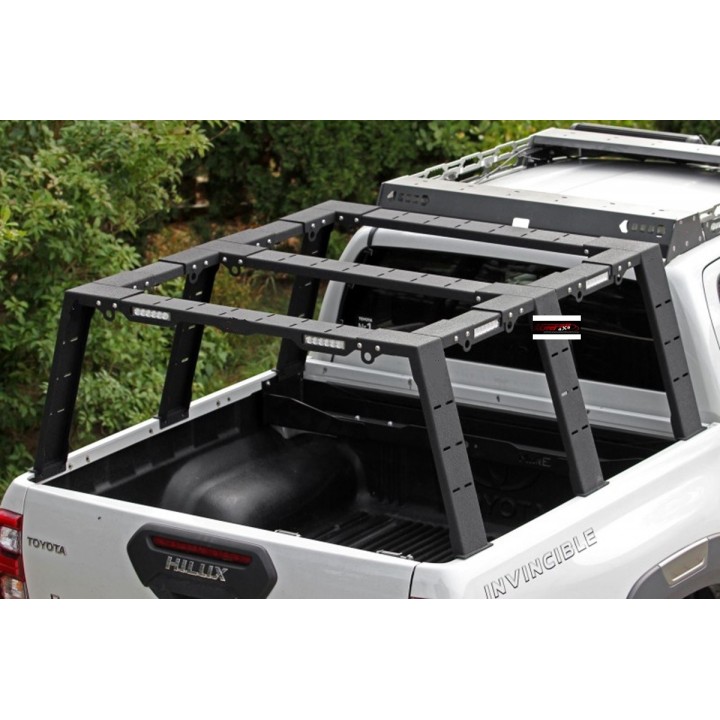

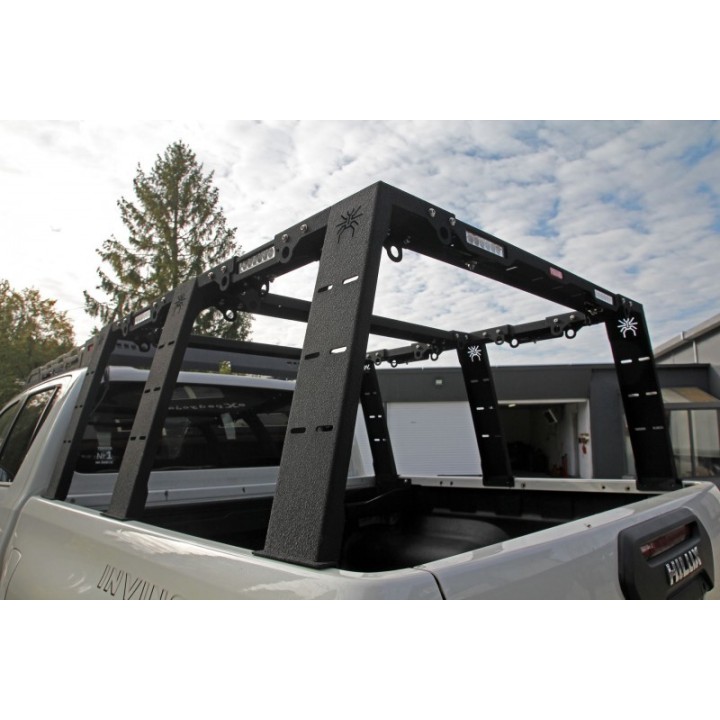

BLACK STEEL BED RACK with LEDS (option) - mounting on sliding tonneau cover rails:
Bed rack adjustment range:
- length: from 137 cm to 152 cm
- width: from 146 cm to 154 cm
- platform height: 57 cm
This mark II bed rack is a solution for pickup owners who plan to mount a roof tent or a support above the vehicle's bed.
Version dedicated to vehicles equipped with a sliding tonneau cover with mounting rails along the entire length of the tonneau cover.
Thanks to the adjustable length and width of the structure, it adapts to all European Double, King, and Single Cab pickups.
For installation, place 12 screws inside the rolling shutter mounting rails and screw them to the tonneau cover rails (screws are included).
In the case of a sliding tonneau cover without mounting rails/channels, special supports, available separately, should be used:
- Mounting brackets for sliding tonneau covers without rails (AC009)
To mount the fixings on a sliding tonneau cover not equipped with mounting rails, cut a seal between the side beam of the tonneau cover and the side of the pickup where the bed support feet are mounted.
Each support is mounted with two M8 screws on the inner edge of the pickup's side panel.

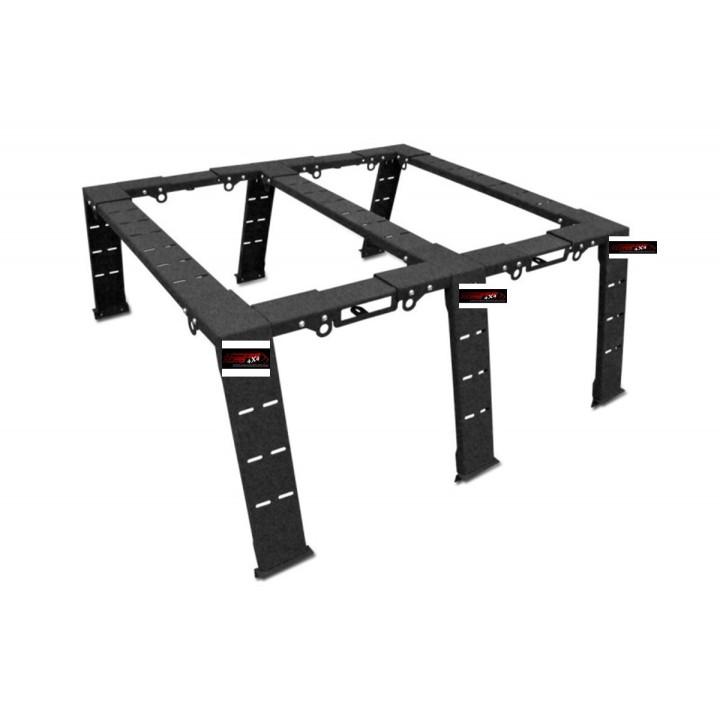

The frame is made of 3 mm thick steel and the support beams are 12 cm wide.
Such a massive structure affects the durability of the bed support and its load capacity, which is: static 350 kg / dynamic 150 kg

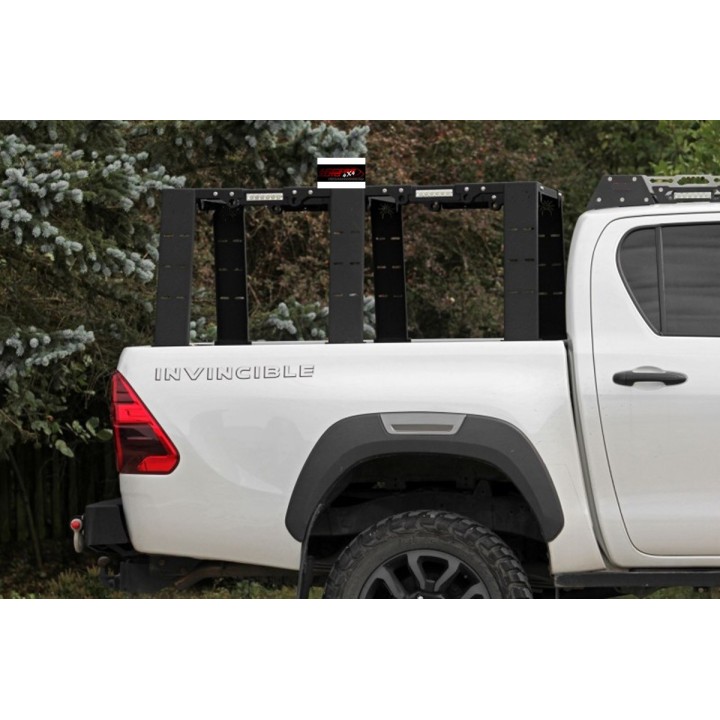

The high version of this bed rack allows a roof tent to be mounted and to pass over the vehicle's roof.
Also very practical for transporting very long items
Delivered complete with screws - fixing kit + assembly instructions
