BED RACK FORD RANGER Leds mounting on tonneau cover rails Length 137 to 152 cms Height 32cms 350kgs
Reference : ACFRRF00950GBGR32
€1,029.00
Tax included
FORD RANGER
Double Cab or Super Cab

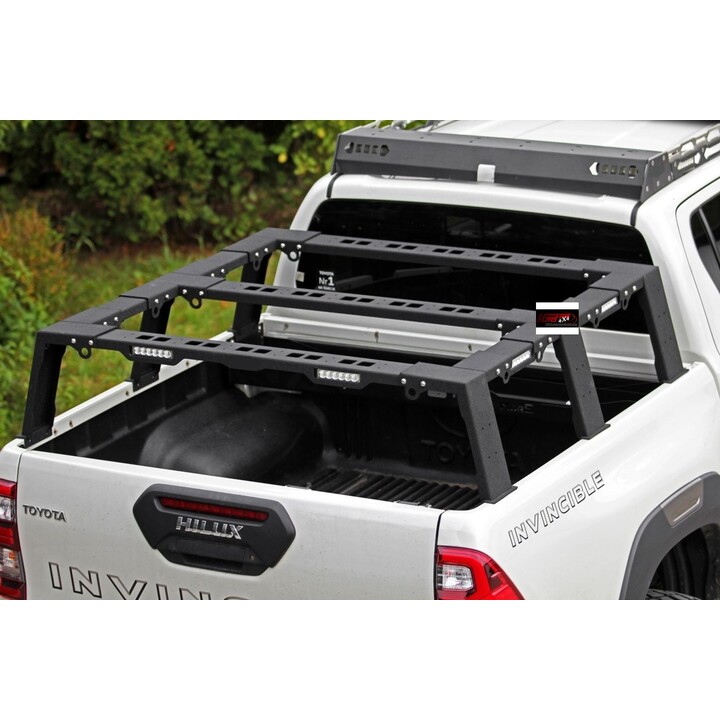

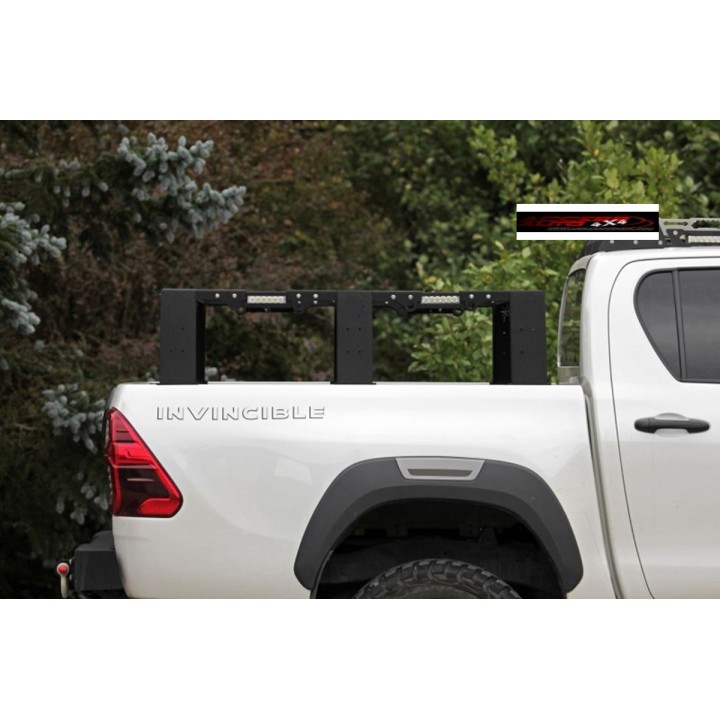

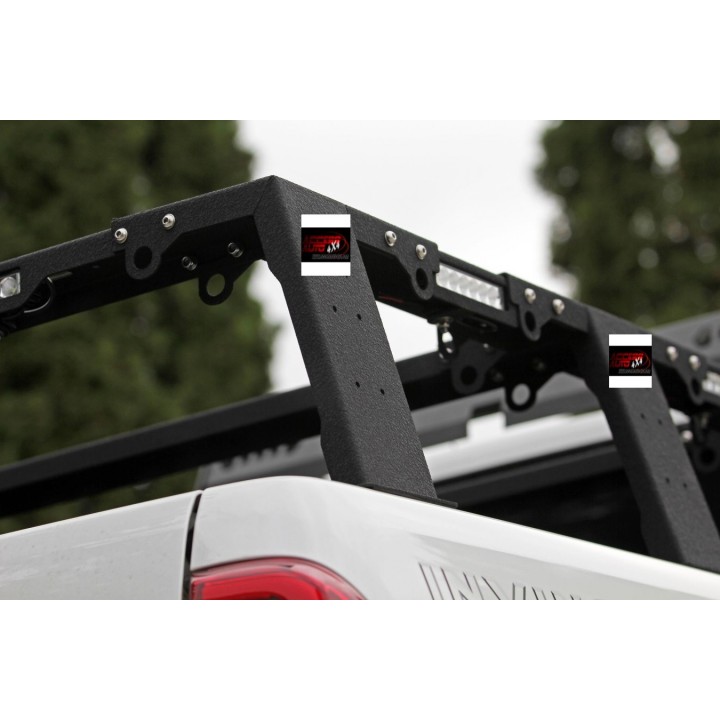

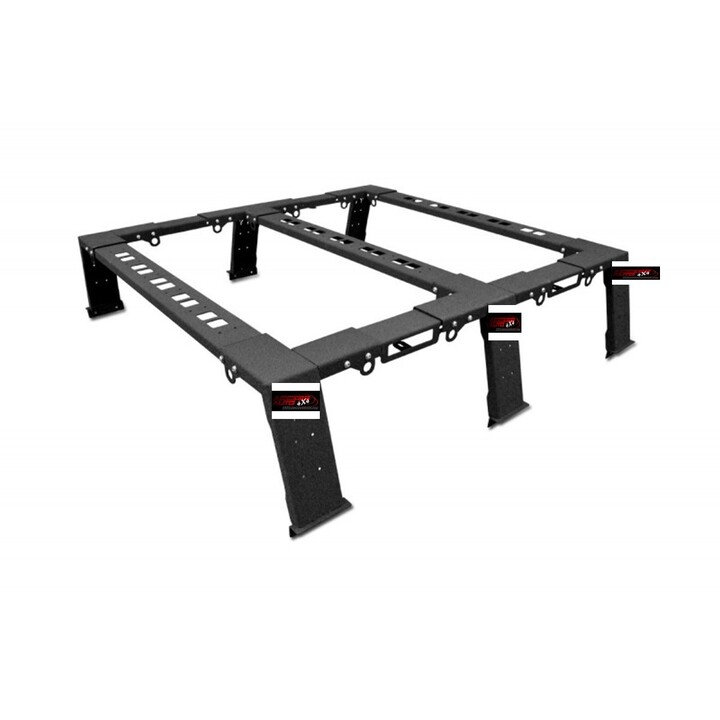

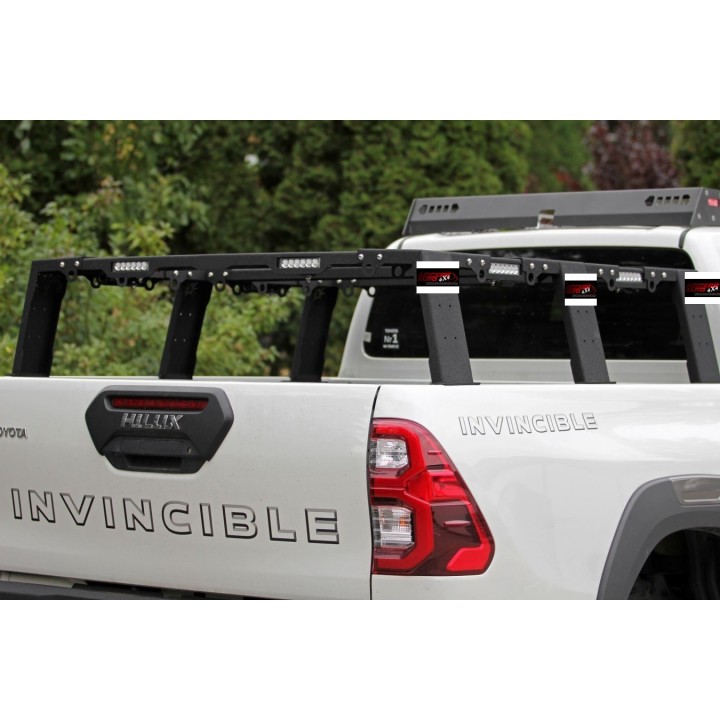

BLACK STEEL BED RACK with LEDS mounting on sliding tonneau cover rails:
Bed rack adjustment range:
- variable length: from 137 cm to 152 cm
- variable width: from 146 cm to 154 cm
- platform height: 32 cm
This Mark II bed rack is a solution for pickup owners who plan to mount a roof tent or a support above the vehicle's bed.
Version dedicated to vehicles equipped with a sliding tonneau cover with fixing rails along the entire length of the tonneau cover.
Thanks to the adjustable length and width of the structure, it fits all European Double, King and Single Cab pickups.
For installation, place 12 screws inside the mounting rails of the roller shutter and screw them to the tonneau cover rails (screws are included).
In the case of sliding tonneau covers without mounting rails/channels, special supports, available separately, should be used:
- Fixing supports for sliding tonneau covers without rails (AC009)
To mount the fixings on a sliding tonneau cover not equipped with mounting rails, cut a seal between the side beam of the tonneau cover and the side of the pickup where the feet of the bed support are mounted.
Each support is mounted with two M8 screws on the inner edge of the pickup's side panel.
The frame is made of 3 mm thick steel and the support beams have a width of 12 cm.
Such a massive structure affects the durability of the bed support and its load capacity, which is: static 350 kg / dynamic 150 kg
The low version of the bed rack allows the installation of a roof tent, which will be hidden behind the vehicle's cabin, without protruding above its roof.
Delivered complete with screws - fixing kit + assembly instructions

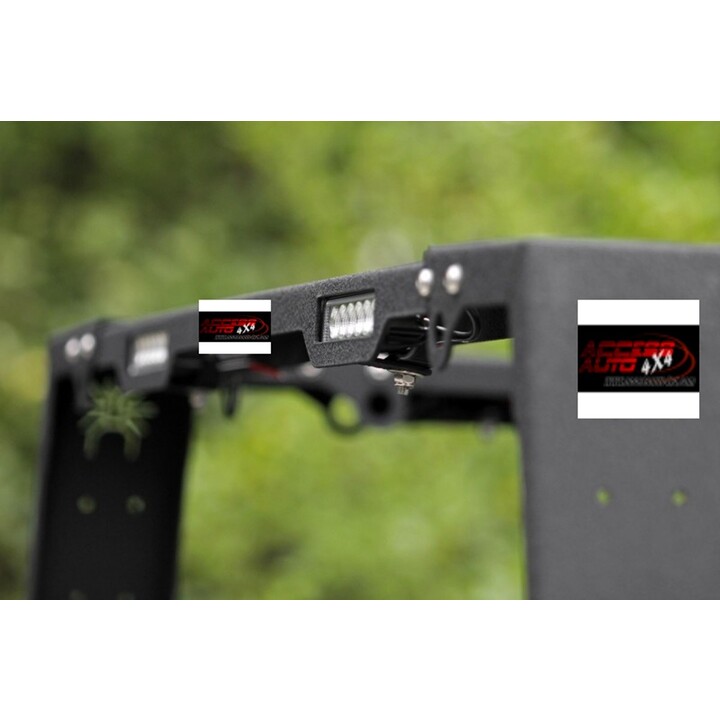

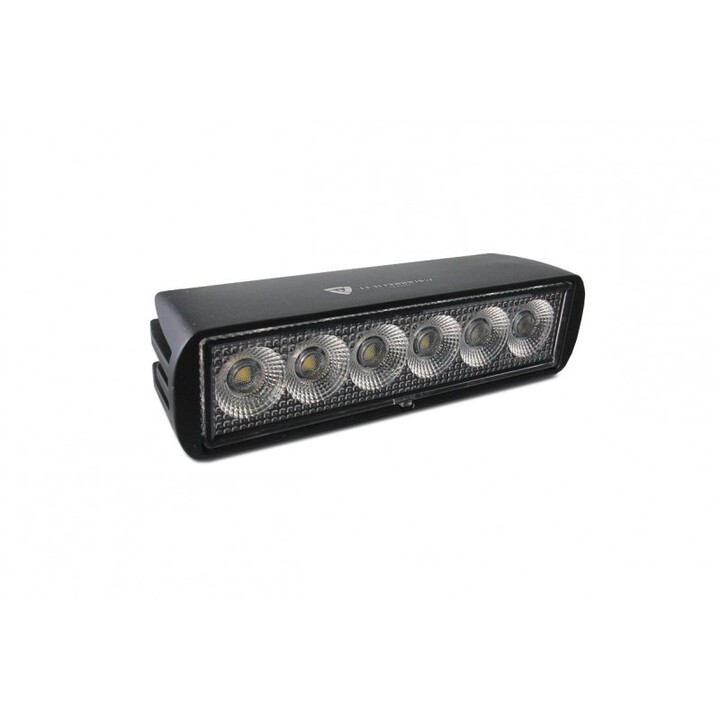

OPTIONAL 6 LEDS:
Diodes: OSRAM
- Power: 24 W
- Luminous flux: 1920 Lm
- Light color: 5700K (neutral white light)
- Noise reduction: CISPR 25 Class 4
- Waterproof for pressure washing: IP68/IP69K
Delivery times
AVAILABLE
