- Roof bar type TRANSVERSE
Reference : ACFRRF00950PROX32S
RENAULT ALASKAN DOUBLE CAB
(2017 - TODAY-)
IDEAL FOR INSTALLATION WITH ROLL BAR OR BED HOOP
Bed rack adjustment range:
- variable length: from 82 cm to 93 cm
- variable width: from 146 cm to 154 cm
- platform height: 32 cm

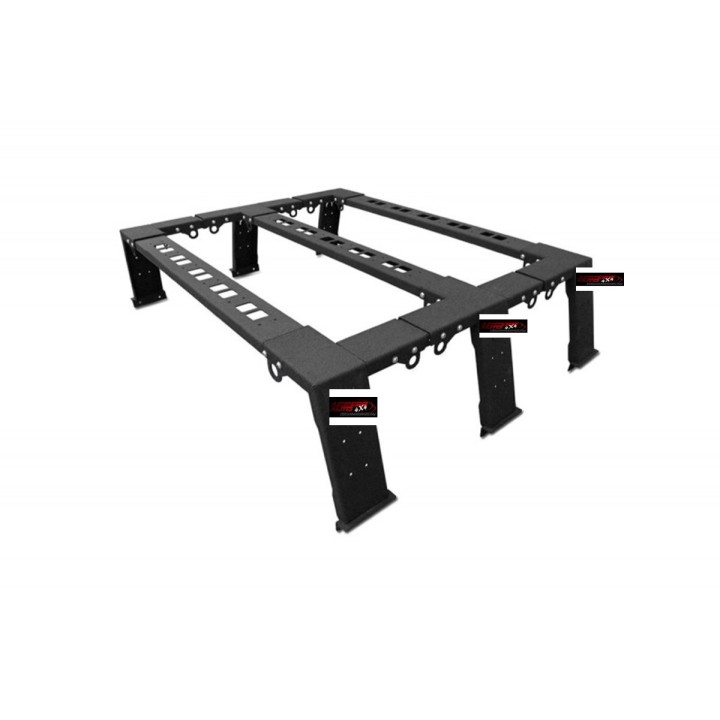

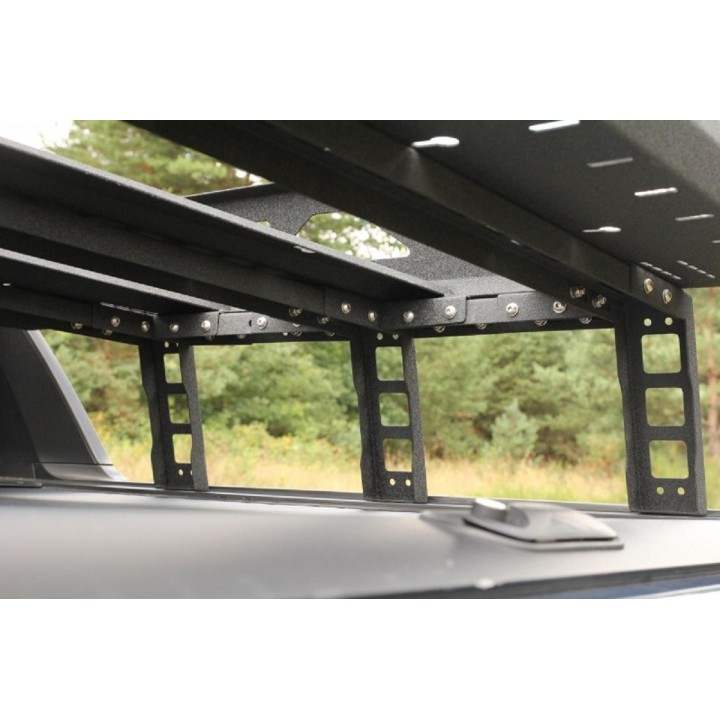

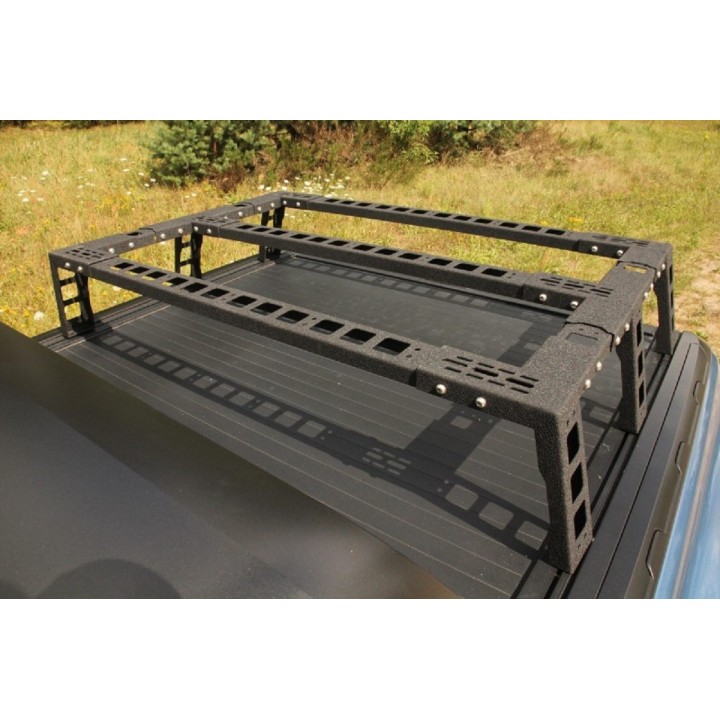

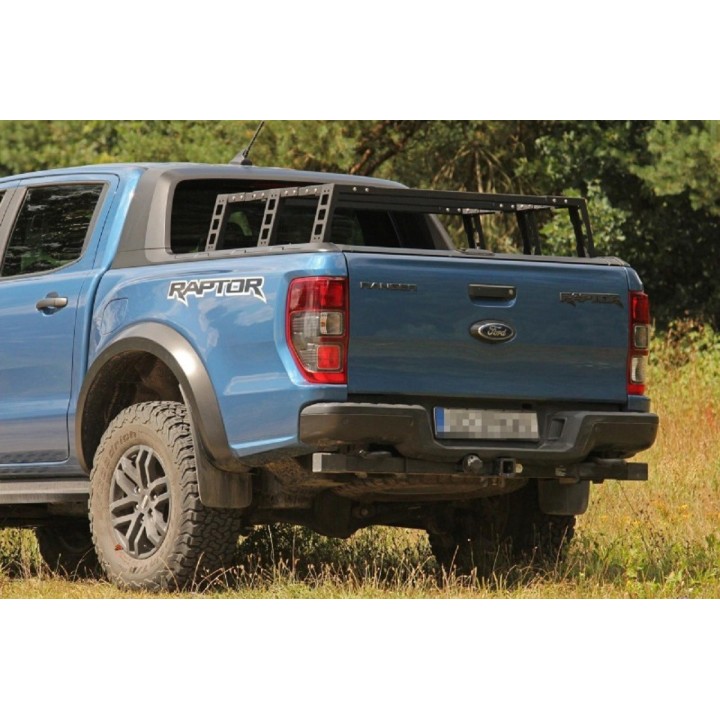

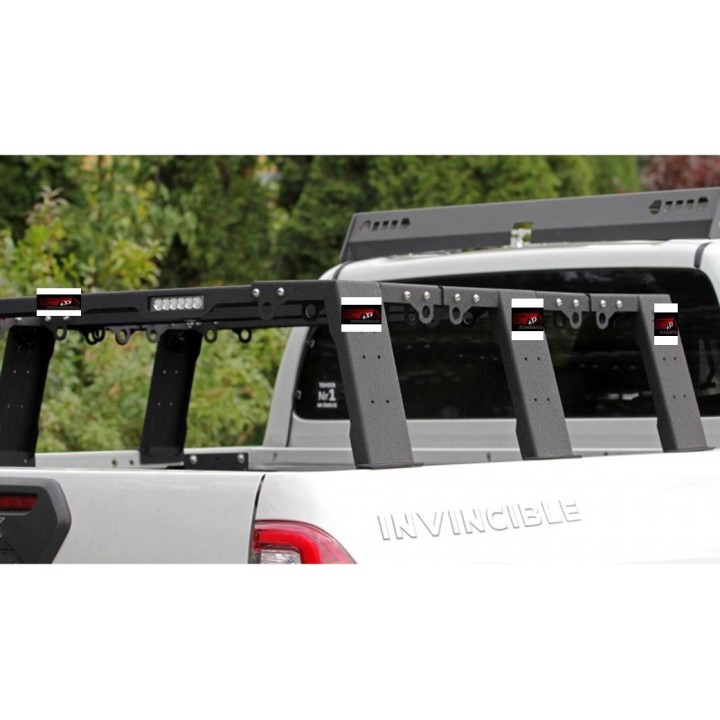

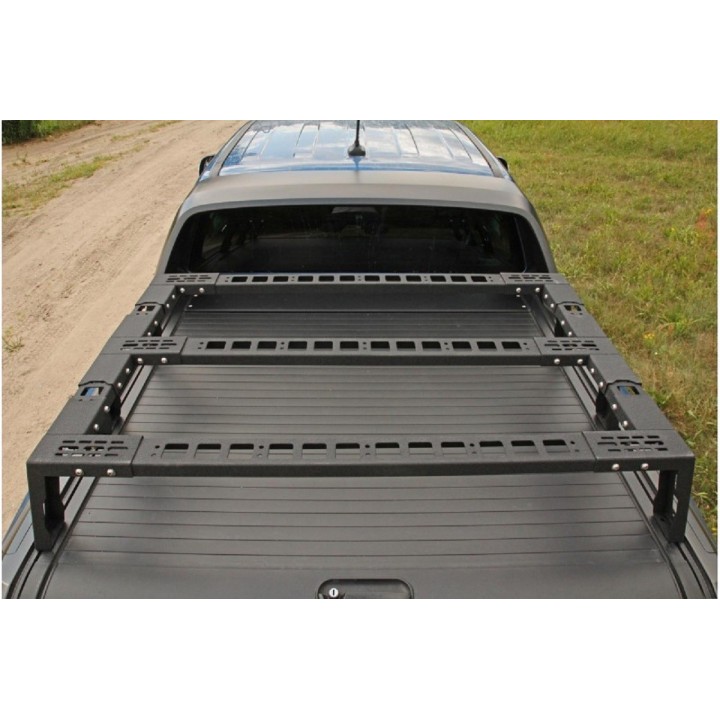

This PRO X bed rack is a solution for pickup owners who plan to mount a roof tent or a support above the vehicle's bed.
Version dedicated to vehicles equipped with a sliding bed cover with fixing rails along the entire length of the bed cover.
Thanks to the adjustable length and width of the structure, it fits all European Double, King and Single Cab pickups.
For installation, place 12 screws inside the roller shutter mounting rails and screw them to the bed cover rails (screws are included).
In the case of sliding bed covers without mounting rails/channels, special supports, available separately, should be used:
- Fixing supports for sliding bed covers without rails (AC009)
To mount the fixings on a sliding bed cover not equipped with mounting rails, cut a seal between the side beam of the bed cover and the side of the pickup where the bed support feet are mounted.
Each support is mounted with two M8 screws on the inner edge of the pickup's side panel.
The frame is made of 3 mm thick steel and the support beams are 12 cm wide.
Such a massive structure affects the durability of the bed support and its load capacity, which is: static 350 kg / dynamic 150 kg
The low version of the bed rack allows the installation of a roof tent, which will be hidden behind the vehicle's cabin, without extending above its roof.
Delivered complete with screws - fixing kit + assembly instructions
AVAILABLE
