BED RACK TOYOTA HILUX 2010 2015 PRO X Length 82 93 cms Height 32cms 350kgs
Reference : ACFRRF00950PROX
TOYOTA HILUX DOUBLE CAB or KING CAB
(2010 - 2015)
IDEAL FOR INSTALLATION WITH ROLL BAR OR BED ROLL BAR

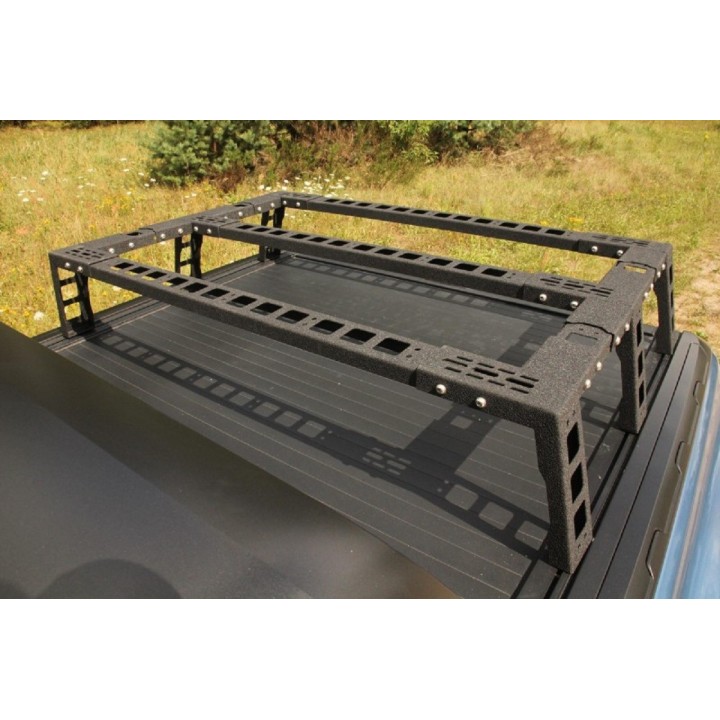

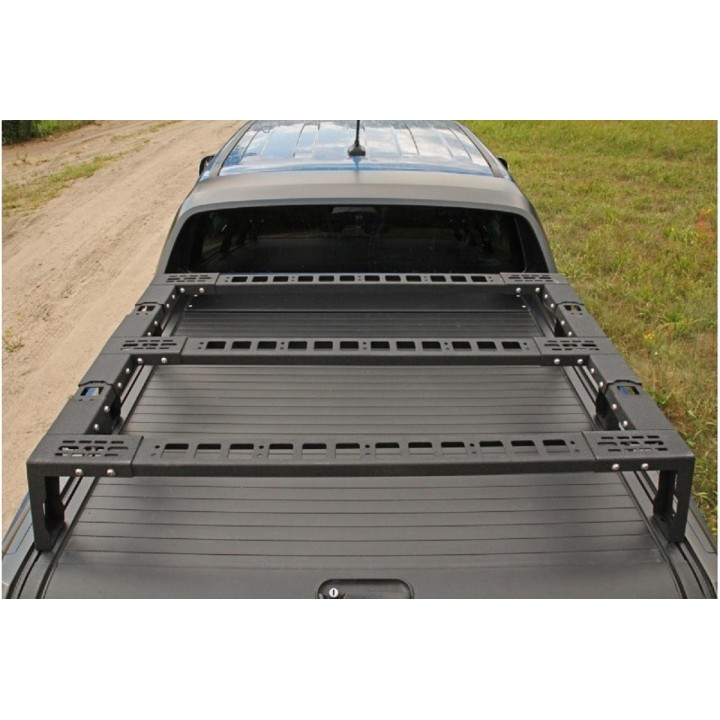

PRO X BLACK STEEL BED RACK mounting on sliding bed cover rails:
Bed rack adjustment range:
- variable length: from 82 cm to 93 cm
- variable width: from 146 cm to 154 cm
- platform height: 32 cm
This PRO X bed rack is a solution for pickup owners who plan to mount a roof tent or a support above the vehicle's bed.
Version dedicated to vehicles equipped with a sliding bed cover with fixing rails along the entire length of the bed cover.
Thanks to the adjustable length and width of the structure, it adapts to all European Double, King and Single Cab pickups.

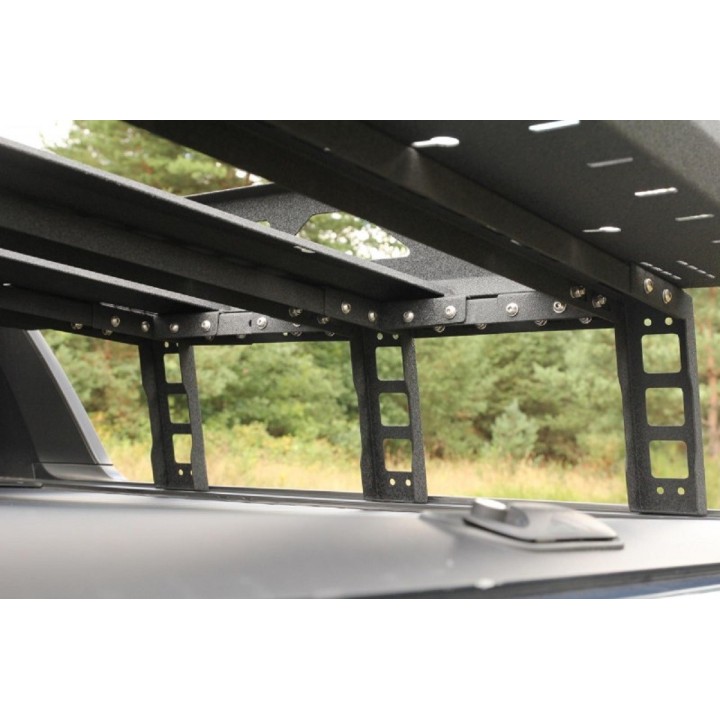

For installation, place 12 screws inside the roller shutter mounting rails and screw them to the bed cover rails (screws are included).
In the case of a sliding bed cover without mounting rails/channels, special supports should be used, available separately:
- Fixing supports for sliding bed covers without rails (AC009)
To mount the fixings on a sliding bed cover not equipped with mounting rails, cut a seal between the side beam of the bed cover and the side of the pickup where the bed support feet are mounted.
Each support is mounted with two M8 screws on the inner edge of the pickup's side panel.

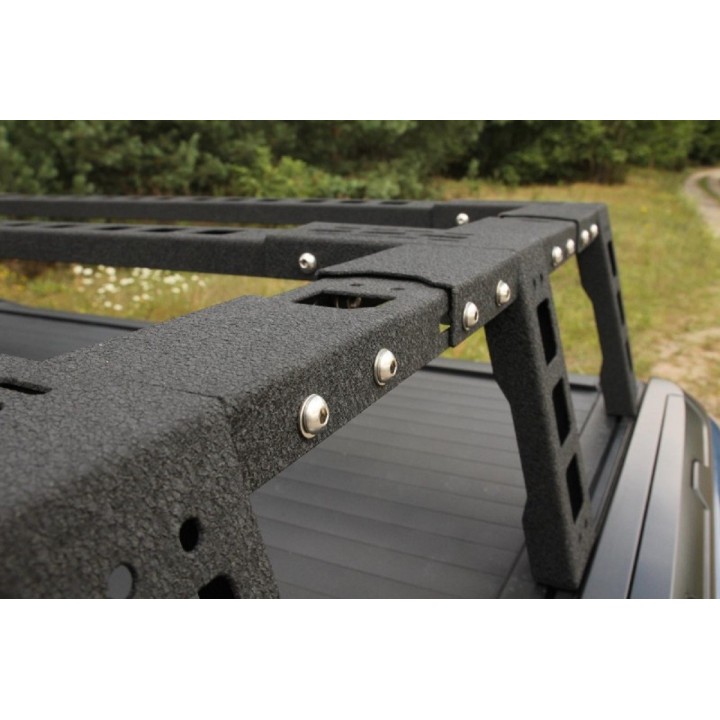

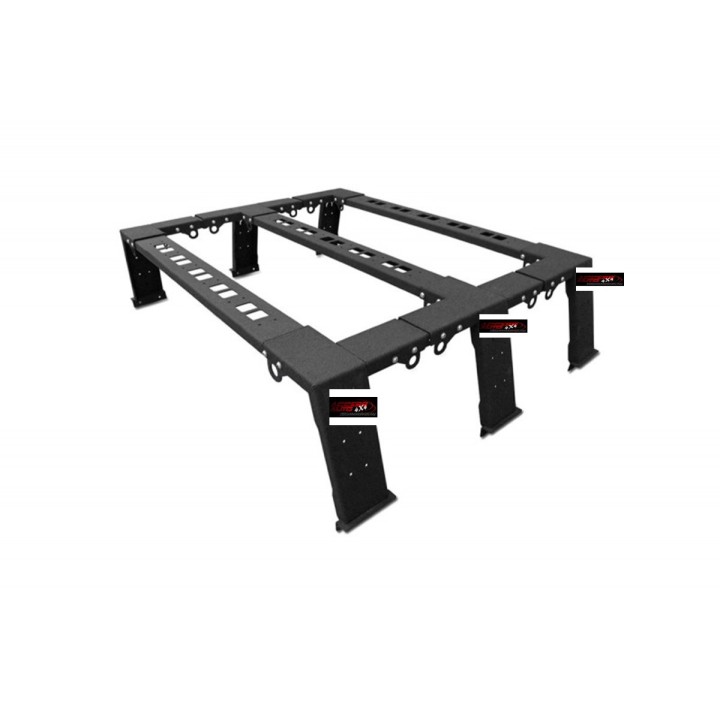

The frame is made of 3 mm thick steel and the support beams have a width of 12 cm.
Such a massive structure affects the durability of the bed support and its load capacity, which is: static 350 kg / dynamic 150 kg

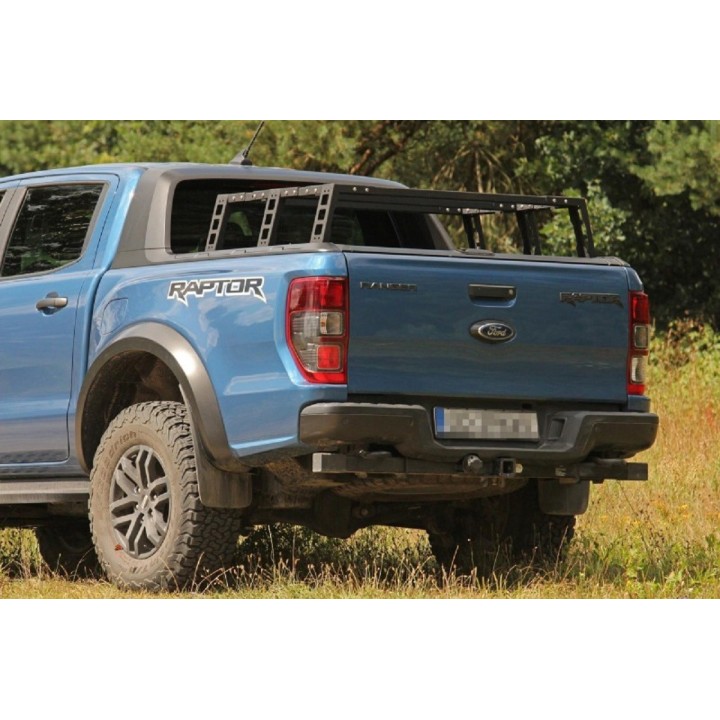

The low version of the bed rack allows the installation of a roof tent, which will be hidden behind the vehicle's cabin, without protruding above its roof.
Delivered complete with screws - fixing kit + assembly instructions
